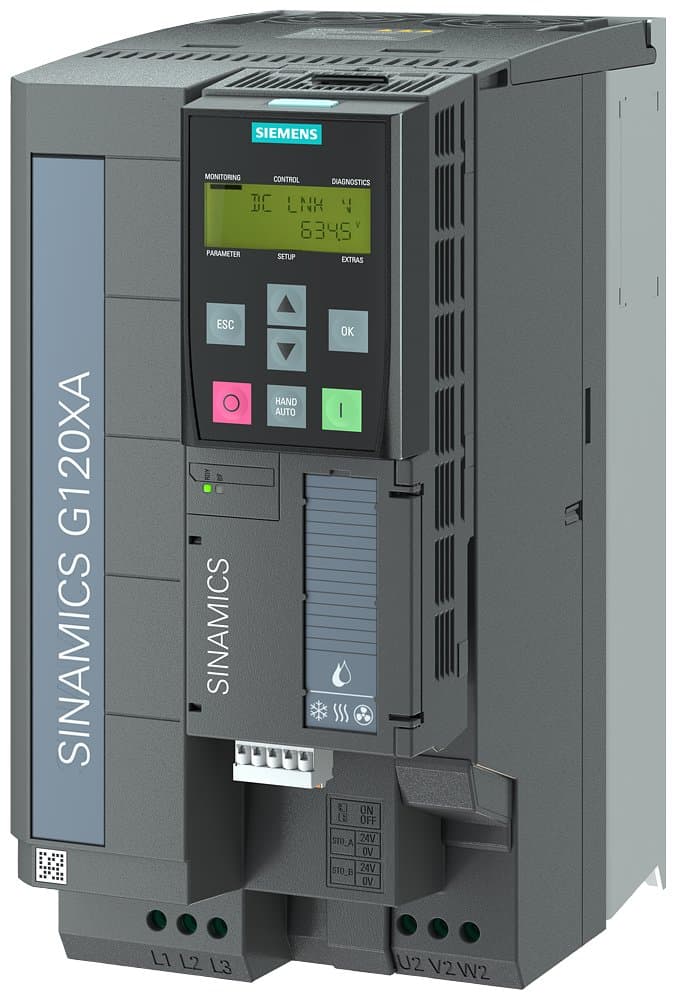

6SL3220-2YD26-0UB0
Product ID:207765
Updated: 2026/4/5
Key Features
- 1Power demanding fan and pump applications with 11kW rated output. 2、Simplify setup and control using the integrated Basic Operating Panel. 3、Connect seamlessly to systems supporting Modbus, USS, or BACnet. 4、Ensure reliable operation in various conditions with IP20 protection. 5、Optimize energy efficiency in HVAC and water treatment processes.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 209mm | Height | 295mm |
| Width | 140mm | Analog Outputs | 2 |
| Analog Inputs | 2 | Digital Outputs | 4 |
| Digital Inputs | 6 | Protection Rating | IP20 |
| Dimension | FSC | Input Phases | 3 |
| Filter | No Filter | Motor Power | 11kW |
| Rated Voltage | 380-440V | Product Type | Inverter |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 6SL3220-2YD26-0UB0 |
Specifications may be subject to change without notice
