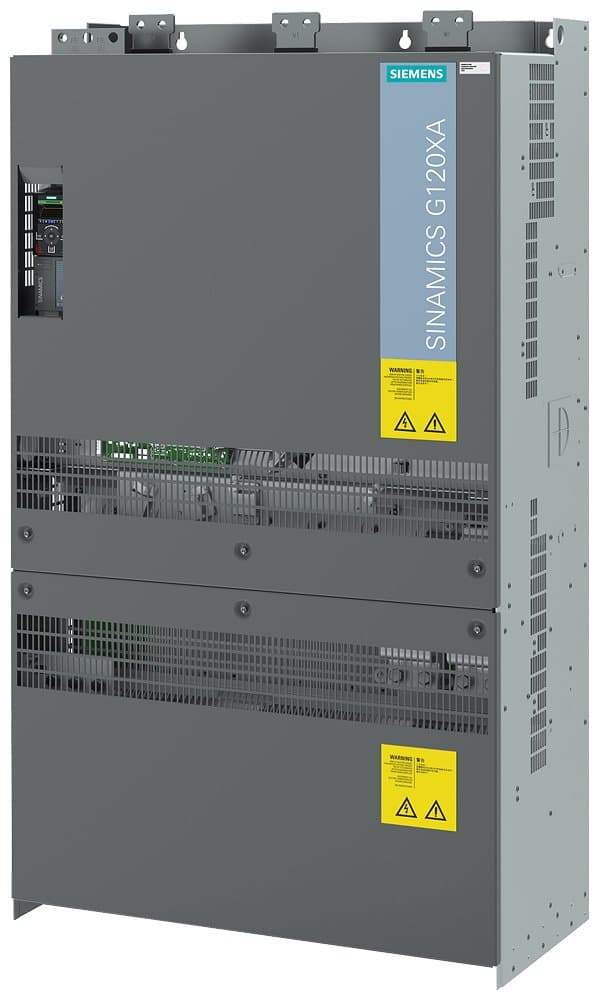

6SL3225-3YD64-0CB0
Product ID:106076
Updated: 2026/4/3
Key Features
- 1Deliver 500KW rated power for demanding industrial applications. 2、Serve fan pump systems in water treatment, HVAC, and environmental protection. 3、Integrate advanced C3 stage filter technology for enhanced reliability. 4、Utilize vector control for precise and efficient motor operation. 5、Support Modbus, USS, and BACnet protocols for seamless integration.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 393mm | Height | 1,438mm |
| Width | 801mm | Analog Outputs | 2 |
| Analog Inputs | 2 | Digital Outputs | 4 |
| Digital Inputs | 6 | Protection Rating | IP00 |
| Dimensions | FSJ | Input Phases | 3 |
| Filter | Integrated A-C3 Class Filter | Motor Power | 500kW |
| Rated Voltage | 380-440V | Product Type | Inverter |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 3A999A | AL | N |
| Model Number | 6SL3225-3YD64-0CB0 |
Specifications may be subject to change without notice
