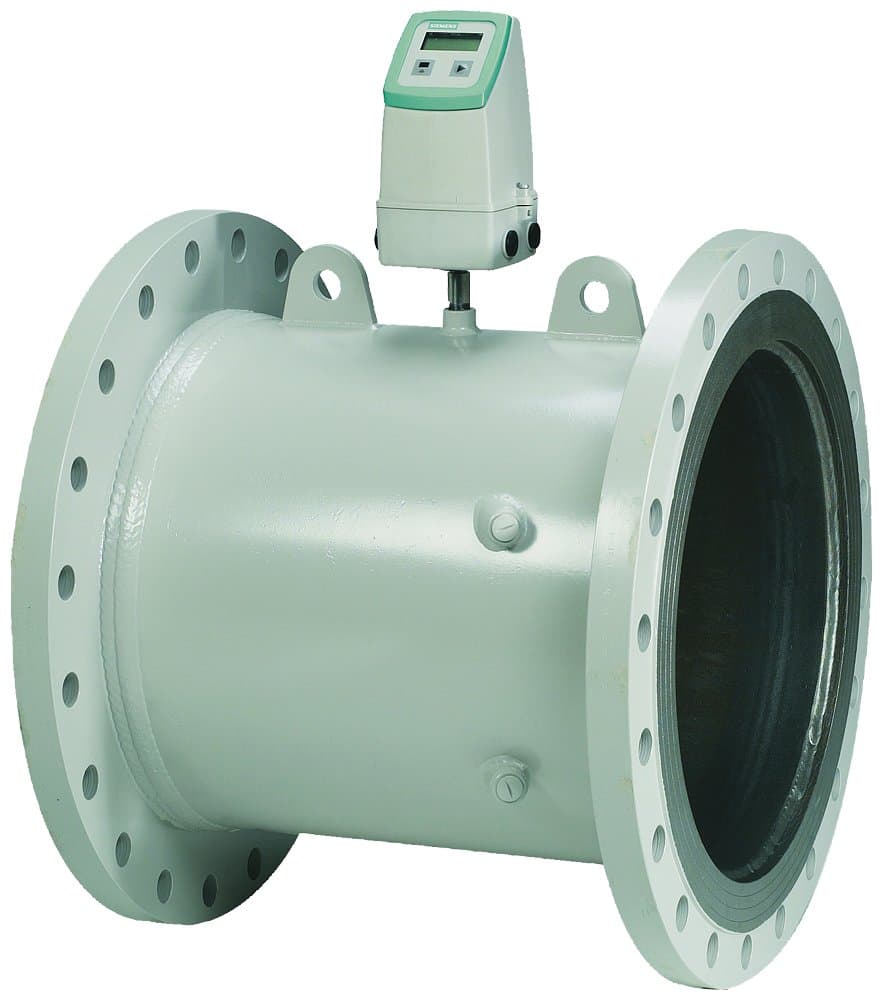

7ME3410-3CC31-5EC2
Product ID:118039
Updated: 2026/7/2
Key Features
- 1Measure volume flow accurately from DN 50 to DN 1200.
- 2Calculate thermal energy for district heating networks.
- 3Meet strict custody transfer standards for reliability.
- 4Operate flexibly via mains or battery power.
- 5Comply with REACH regulations for safe use.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Temperature Resistance | Separate, temperature resistance up to 200°C | Separate Cable Length | 10 m |
| Output | Pulse output: 50L/p; pulse width 5ms | Power Supply | 220VAC with 3.6V backup battery + X7:AB7X7:AA7 |
| Electrical Interface | M20x1.5 | Protection Rating | Sensor IP67, transmitter IP65, separate, non-explosion proof |
| Flange and Pressure Rating | Flange standard EN1092-1, pressure rating PN16 | Size and Flow Range | DN400, material carbon steel, nominal flow rate Qp=950m³/h, maximum flow rate Qs=2660m³/h, minimum flow rate Qi=19m³/h |
| Product Series | SITRANS FUE 380 | Product Type | Ultrasonic Flow Meter |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 7ME3410-3CC31-5EC2 |
Specifications may be subject to change without notice
