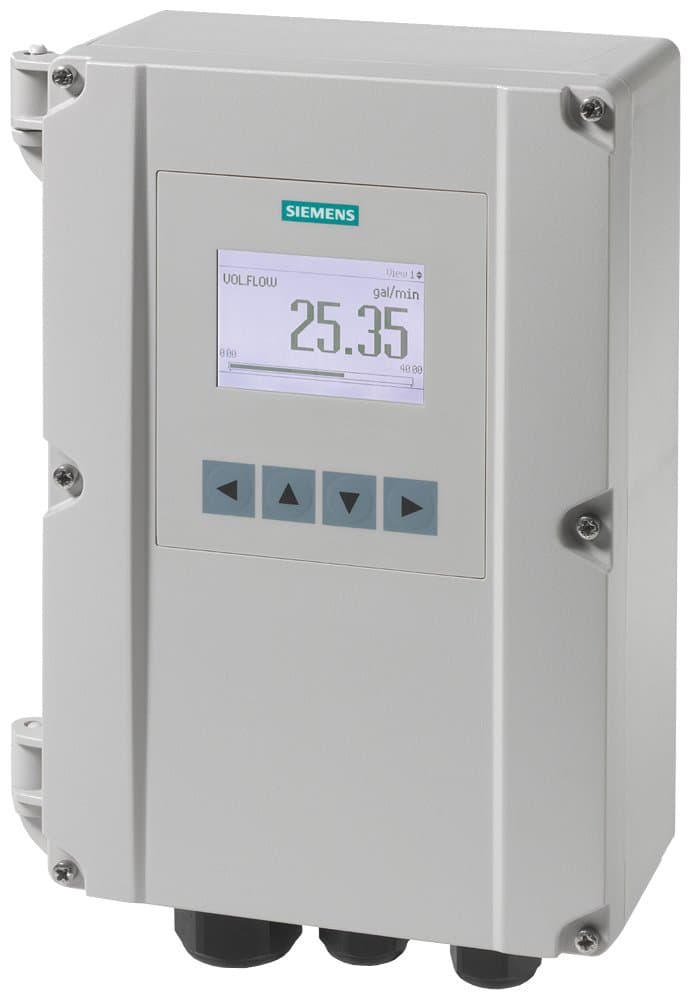

7ME3570-1JB40-0EQ1-ZS30
Product ID:106222
Updated: 2026/4/3
Key Features
- 1Eliminate pipe cutting and flow stoppage for installation. 2、Keep sensors externally mounted to minimize upkeep. 3、Ensure durability with a design that has no moving parts. 4、Measure wide flow ranges and bidirectional movement accurately. 5、Compensate automatically for non-ideal pipe conditions.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Medium Temperature | -40°C … 120°C | Separate Cable | 2*10 m |
| Output | Modbus, 4-20mA, pulse, switch | Power Supply | 24VDC |
| Protection Rating | Transmitter IP65,
Separate, non-explosion proof | Sensor Type | Sensor D3
Applicable pipe outer diameter 203-610mm |
| Product Series | SITRANS FS 220 | Product Type | Ultrasonic Flow Meter |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | EAR99H | AL | N |
| Model Number | 7ME3570-1JB40-0EQ1-ZS30 |
Specifications may be subject to change without notice
