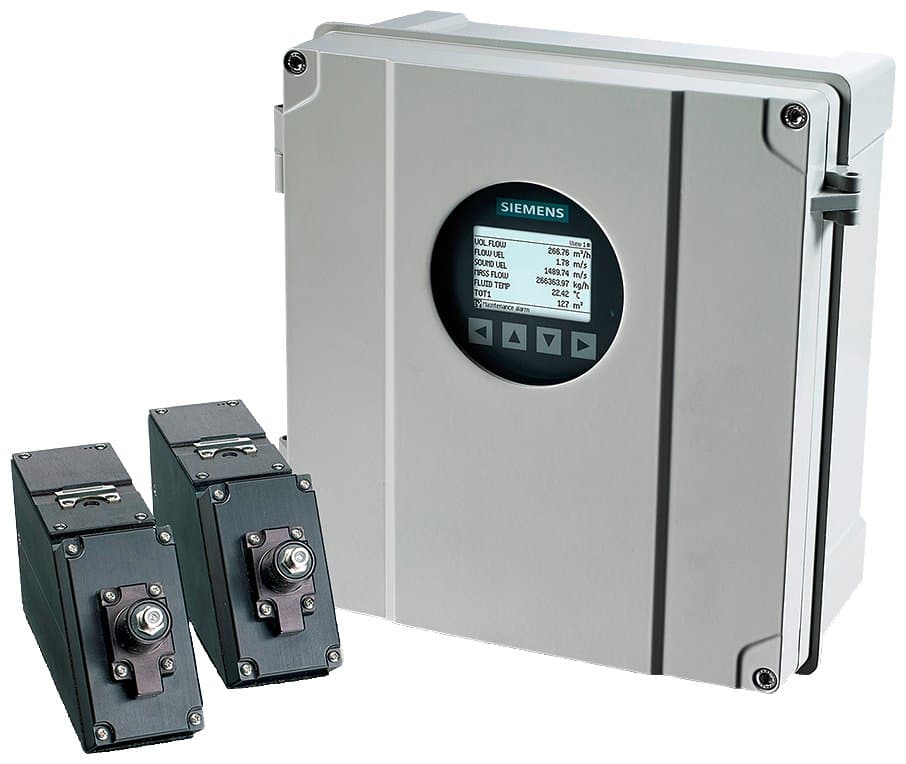

7ME3723-7JK22-1UA3-ZA01B11E02F00S30T29
Product ID:208011
Updated: 2026/4/3
Key Features
- 1Achieve highly accurate flow measurement for industrial sectors. 2、Install easily on water, crude oil, and gas pipelines. 3、Ensure reliable performance in harsh industrial environments. 4、Comply with REACH Regulation for safe use. 5、Benefit from a clamp-on design without process interruption.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Medium Temperature | -40°C … 121°C | Separate Cable Length | 4*10m |
| Software Function | Liquids, industrial standard applications | Output | HART, 4-20mA |
| Transmitter Type | Cast aluminum wall-mounted enclosure, IP67; non-explosion proof | Sensor Type | Sensor D3; applicable pipe outer diameter 203-610mm |
| Product Series | SITRANS FS230 | Product Type | Ultrasonic Flow Meter |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | N | AL | N |
| Model Number | 7ME3723-7JK22-1UA3-ZA01B11E02F00S30T29 |
Specifications may be subject to change without notice
