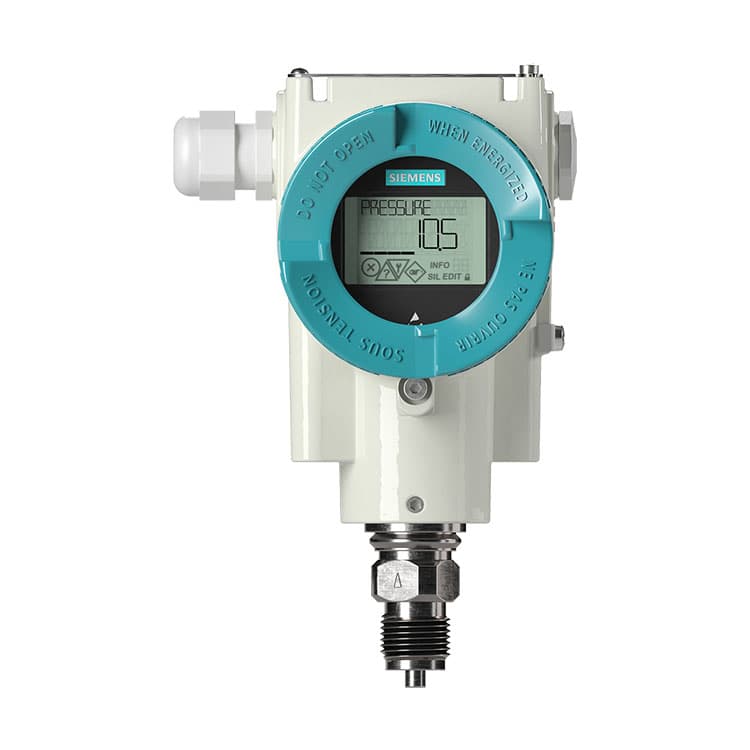

7MF0300-1FE01-5AF2-ZA00E00H01Y01
Product ID:101957
Updated: 2026/4/3
Key Features
- 1Measure gauge pressure up to 63 bar (914 psi) with silicone oil fill. 2、Construct process connections and seal diaphragms from stainless steel 316L/1.4404. 3、Parameterize and diagnose easily via HART (4-20 mA) communication. 4、Feature two M20 x 1.5 connections in a die-cast aluminum housing. 5、Carry global approvals including CE, UKCA, and RCM for wide acceptance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Parameter Adjustment Keys Included | Yes | Protection Rating | IP66 |
| Power Supply | 10.5 … 45 V DC | Environmental Temperature Range | -40 … 85℃ |
| Process Temperature Range | -40 … 100℃ | Medium Type | Corrosive and Non-Corrosive Gases, Liquids, and Steam |
| Bracket | Carbon Steel Bracket | Display Included | Yes |
| Cable and Plug Material | Plastic | Electrical Connection | M20*1.5 |
| Explosion Protection Type | Non-Explosion Proof | Enclosure Material | Cast Aluminum |
| Wetted Material | 316L Stainless Steel | Process Connection | 1/2-14 NPT Internal Thread |
| Measurement Range | 0 … 25 kPa | Filling Liquid | Silicone Oil |
| Communication Type | HART 7 | Accuracy | 0.065% |
| Product Series | SITRANS P320 Intelligent Pressure Transmitter | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | 3A991X |
| AL | N | Model Number | 7MF0300-1FE01-5AF2-ZA00E00H01Y01 |
Specifications may be subject to change without notice
