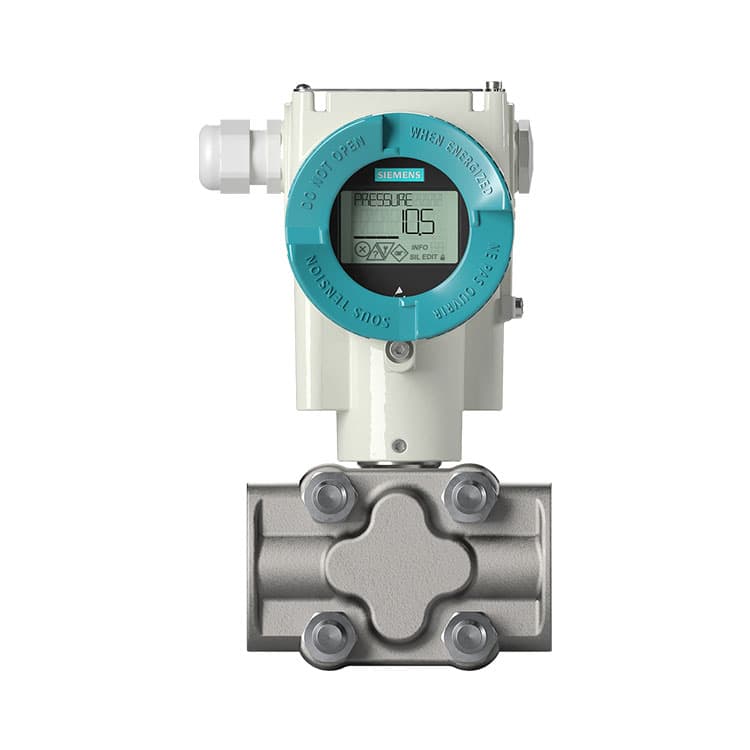

7MF0340-1GM01-5BF2-ZA00B35D42E27H01Y01Y15
Product ID:117071
Updated: 2026/4/3
Key Features
- 1Measure differential pressure and flow with high 0.075% accuracy. 2、Integrate seamlessly using HART communication protocol. 3、Ensure stable performance with silicone oil-filled measuring cell. 4、Resist corrosion with durable 316L/1.4404 stainless steel housing. 5、Operate safely in hazardous areas with intrinsic safety design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Parameter Adjustment Keys | With | Protection Rating | IP66 |
| Power Supply | 10.5 … 30 V DC | Environmental Temperature Range | -40 … 85℃ |
| Process Temperature Range | -40 … 100℃ | Medium Type | Corrosive and Non-Corrosive Gases, Liquids, and Steam |
| Vent Valve | Without | Bracket | Carbon Steel Bracket |
| Display | With | Cable and Plug Material | Plastic |
| Electrical Connection | M20*1.5 | Explosion Protection Type | NEPSI
Intrinsically Safe Explosion Proof |
| Enclosure Material | Cast Aluminum | Wetted Material | 316L Stainless Steel |
| Process Connection | 1/4-18 NPT Internal Thread | Measurement Range | 0 … 25 kPa |
| Filling Liquid | Silicone Oil | Maximum Allowable Operating Pressure | 16 MPa |
| Communication Type | HART 7 | Accuracy | 0.065% |
| Product Series | SITRANS P320 Intelligent Pressure Transmitter | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | 3A991X |
| AL | N | Model Number | 7MF0340-1GM01-5BF2-ZA00B35D42E27H01Y01Y15 |
Specifications may be subject to change without notice
