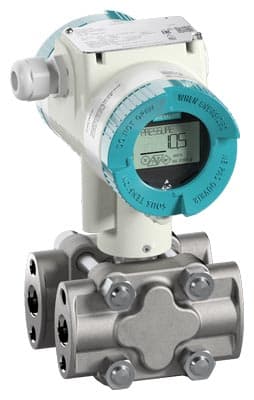

7MF0350-1HM01-5AF2-ZA00B35E12H01Y01Y15
Product ID:102310
Updated: 2026/7/2
Key Features
- 1Measure differential pressure accurately with a 600 mbar maximum span.
- 2Integrate seamlessly using HART (4-20 mA) communication protocol.
- 3Ensure durability with a corrosion-resistant 316L stainless steel housing.
- 4Operate safely with a dual-chamber, non-Ex design for simplified use.
- 5Deploy globally with CE, UKCA, and RCM standard approvals.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Parameter Adjustment Keys | With | Protection Rating | IP66 |
| Power Supply | 10.5…45 V DC | Environmental Temperature Range | -40…85℃ |
| Process Temperature Range | -40…100℃ | Medium Type | Corrosive and Non-Corrosive Gases, Liquids, and Steam |
| Vent Valve | Without | Bracket | Carbon Steel Bracket |
| Display | With | Cable and Plug Material | Plastic |
| Electrical Connection | M20*1.5 | Explosion Protection Type | Non-Explosion Proof |
| Enclosure Material | Cast Aluminum | Wetted Material | 316L Stainless Steel |
| Process Connection | 1/4-18 NPT Internal Thread | Measurement Range | 0…60 kPa |
| Filling Liquid | Silicone Oil | Maximum Allowable Operating Pressure | 42 MPa |
| Communication Type | HART 7 | Accuracy | 0.065% |
| Product Series | SITRANS P320 Intelligent Pressure Transmitter | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | 3A991X |
| AL | N | Model Number | 7MF0350-1HM01-5AF2-ZA00B35E12H01Y01Y15 |
Specifications may be subject to change without notice
