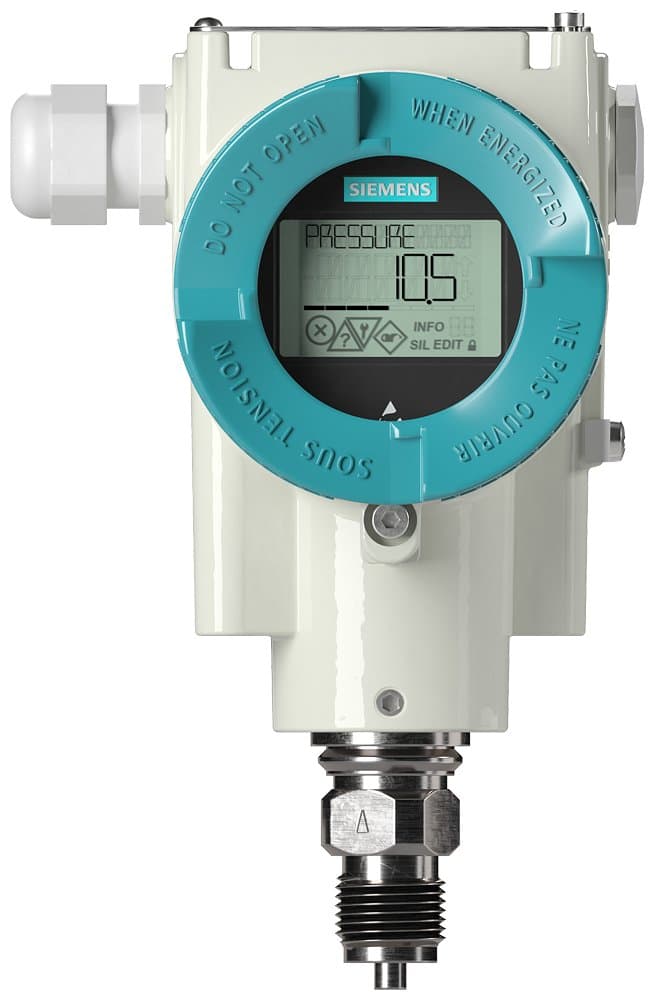

7MF0400-1QE01-5AF2-ZA00E00H01Y01
Product ID:125518
Updated: 2026/7/2
Key Features
- 1Measure gauge pressure up to 63 bar (914 psi) with high accuracy.
- 2Integrate seamlessly via HART (4-20 mA) communication protocol.
- 3Operate safely in hazardous areas with intrinsic safety and explosion-proof ratings.
- 4Ensure durability with 316L stainless steel process connections and diaphragms.
- 5Monitor process data easily with the dual-chamber device and display.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Parameter Adjustment Button Included | Yes | Protection Rating | IP66 |
| Power Supply | 10.5 … 45 V DC | Environmental Temperature Range | -40 … 85℃ |
| Process Temperature Range | -40 … 100℃ | Medium Type | Corrosive and Non-Corrosive Gases, Liquids, and Steam |
| Bracket | Carbon Steel Bracket | Display Included | Yes |
| Cable and Plug Material | Plastic | Electrical Connection | M20*1.5 |
| Explosion Protection Type | Non-Explosion Proof | Enclosure Material | Cast Aluminum |
| Wetted Material | 316L Stainless Steel | Process Connection | 1/2-14 NPT Internal Thread |
| Measurement Range | 0 … 16 bar | Filling Liquid | Silicone Oil |
| Communication Type | HART 7 | Accuracy | 0.0004 |
| Product Series | SITRANS P420 Intelligent Pressure Transmitter | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | EAR99H |
| AL | N | Model Number | 7MF0400-1QE01-5AF2-ZA00E00H01Y01 |
Specifications may be subject to change without notice
