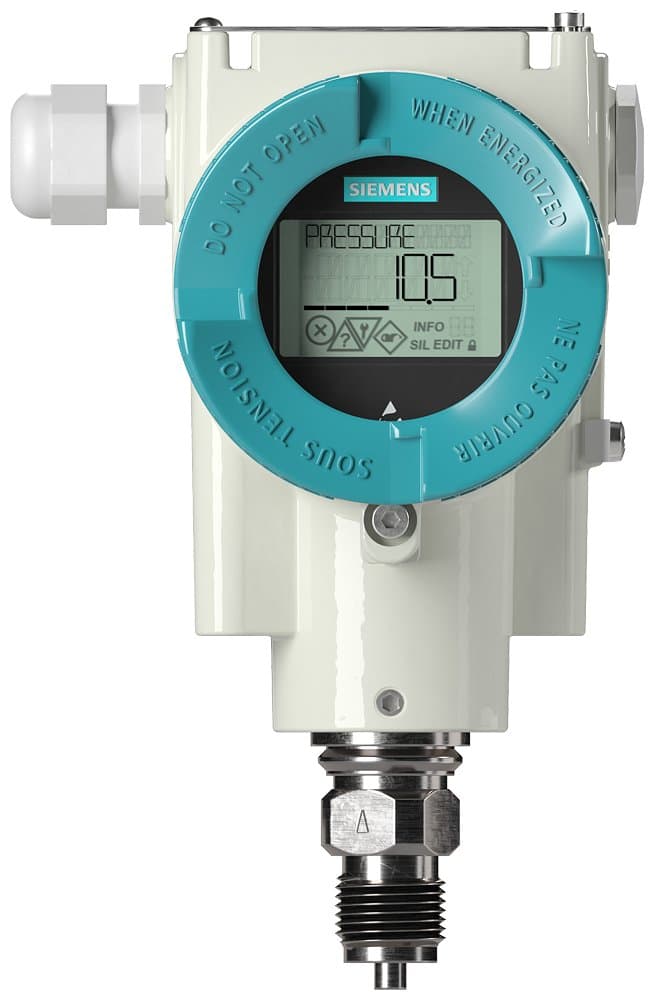

7MF0400-1QE01-5CF2-ZA01B35E27H01Y01
Product ID:216456
Updated: 2026/4/3
Key Features
- 1Measure gauge pressure with high precision up to a 16 bar span. 2、Integrate seamlessly using HART (4-20mA) communication protocol. 3、Operate safely in hazardous areas with intrinsic safety design. 4、Ensure durability with die-cast aluminum and stainless steel housing. 5、Meet global standards including IEC 60770-2 and ATEX certification.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Parameter Adjustment Keys | With | Protection Rating | IP66 |
| Power Supply | 10.5 … 45 V DC | Environmental Temperature Range | -40 … 85℃ |
| Process Temperature Range | -40 … 100℃ | Medium Type | Corrosive and Non-corrosive Gases, Liquids, and Steam |
| Bracket | Carbon Steel Bracket | Display | With |
| Cable and Plug Material | Metal | Electrical Connection | M20*1.5 |
| Explosion-proof Type | NEPSI
Explosion-proof | Enclosure Material | Cast Aluminum |
| Wetted Material | 316L Stainless Steel | Process Connection | 1/2-14 NPT Internal Thread |
| Measurement Range | 0 … 16 bar | Filling Liquid | Silicone Oil |
| Communication Type | HART 7 | Accuracy | 0.0004 |
| Product Series | SITRANS P420 Intelligent Pressure Transmitter | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | EAR99H |
| AL | N | Model Number | 7MF0400-1QE01-5CF2-ZA01B35E27H01Y01 |
Specifications may be subject to change without notice
