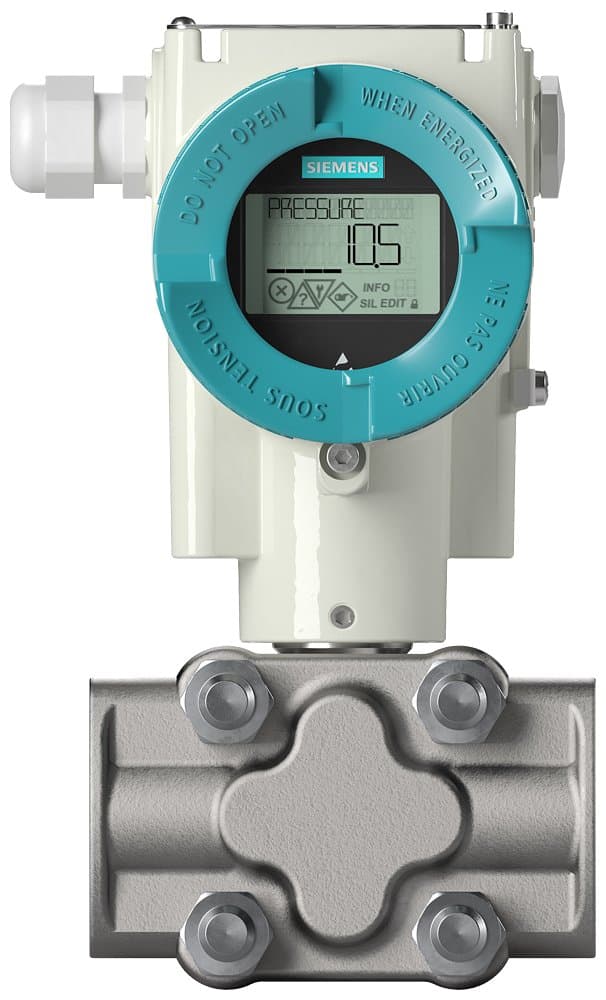

7MF0450-1GM01-5SM2-ZA01B35E27H01Y01Y15
Product ID:116248
Updated: 2026/7/2
Key Features
- 1Measure differential pressure and flow with high precision up to 250 mbar.
- 2Construct the device with durable stainless steel 316L/1.4404 for corrosion resistance.
- 3Operate safely in hazardous areas thanks to intrinsic safety design.
- 4Ensure reliability with a robust dual-chamber device construction.
- 5Integrate seamlessly using the standard HART communication protocol.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Parameter Adjustment Keys | With | Protection Rating | IP66 |
| Power Supply | 10.5 … 30 V DC | Environmental Temperature Range | -40 … 85℃ |
| Process Temperature Range | -40 … 100℃ | Medium Type | Corrosive and Non-Corrosive Gases, Liquids, and Steam |
| Air Drain Valve | Without | Bracket | Carbon Steel Bracket |
| Display | With | Cable and Plug Material | Metal |
| Electrical Connection | 1/2-14 NPT | Explosion Protection Type | NEPSI
Intrinsic Safety + Flameproof + Dust Explosion Protection |
| Enclosure Material | Cast Aluminum | Wetted Materials | 316L Stainless Steel |
| Process Connection | 1/4-18 NPT Internal Thread | Measurement Range | 0 … 25 kPa |
| Filling Liquid | Silicone Oil | Maximum Allowable Operating Pressure | 42 MPa |
| Communication Type | HART 7 | Accuracy | 0.0004 |
| Product Series | SITRANS P420 Intelligent Pressure Transmitter | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | EAR99H |
| AL | N | Model Number | 7MF0450-1GM01-5SM2-ZA01B35E27H01Y01Y15 |
Specifications may be subject to change without notice
