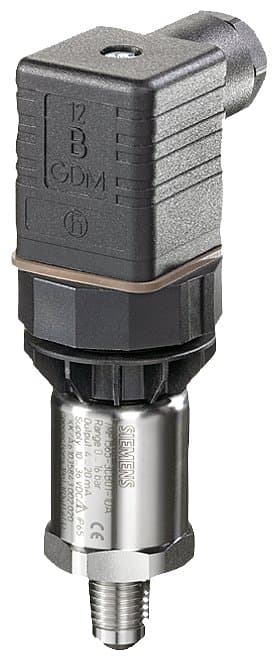

7MF1565-3BA00-1AA1
Product ID:107445
Updated: 2026/7/2
Key Features
- 1Measure 0 to 1 bar pressure with high accuracy and reliability.
- 2Integrate easily using a simple two-wire 4-20mA connection.
- 3Ensure long-term performance with a robust stainless steel enclosure.
- 4Reduce installation time with a compact, lightweight design.
- 5Transmit stable process data for improved control and efficiency.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Display Module | None | Power Supply | 7 … 33 V DC |
| Environmental Temperature Range | -25 … 85℃ | Housing Material | Stainless Steel 316L |
| Medium Type | Pressure Measurement for Gases, Liquids, and Steam | Protection Rating | IP65 |
| Process Temperature | -15 … 125℃ | Sealing Material Between Sensor and Housing | Fluorocarbon Rubber (FPM) |
| Explosion Protection Type | Non-Explosion Proof | Output Signal | 4 ... 20 mA |
| Electrical Interface | Right-angle Cable Entry M16, in accordance with DIN EN 175301-803-A | Process Connection | External Thread G1/2", in accordance with EN 837-1 |
| Diaphragm Material | Ceramic | Accuracy | 2.5000000000000001E-3 |
| Measuring Range | 0 ... 1 bar | Product Series | SITRANS P200 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | N | AL | N |
| Model Number | 7MF1565-3BA00-1AA1 |
Specifications may be subject to change without notice
