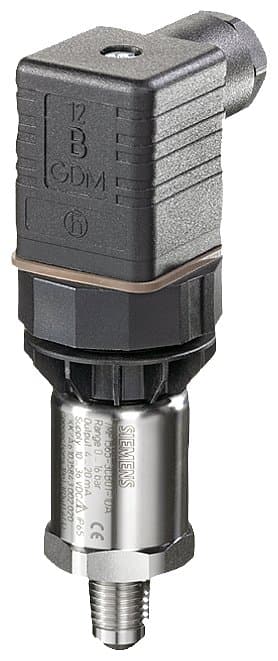

7MF1567-3CA00-1AA1
Product ID:135532
Updated: 2026/7/19
Key Features
- 1Deliver high-precision measurement with 0.25% non-linearity.
- 2Measure absolute pressure from 0 to 10 bar reliably.
- 3Integrate easily using a 4-20 mA 2-wire output signal.
- 4Ensure durability with a fully welded, robust design.
- 5Apply versatilely in high-pressure and refrigerant industries.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Display Module | None | Power Supply | 7 … 33 V DC |
| Environmental Temperature Range | -25 … 85℃ | Enclosure Material | Stainless Steel 316L |
| Medium Type | Pressure Measurement for Gases, Liquids, and Steam | Protection Rating | IP65 |
| Process Temperature | -40 … 120℃ | Explosion Protection Type | Non-Explosion Proof |
| Output Signal | 4 ... 20 mA | Electrical Interface | Right Angle Cable Entry M16, in accordance with DIN EN 175301-803-A |
| Process Connection | External Thread G1/2", in accordance with EN 837-1 | Diaphragm Material | Stainless Steel |
| Accuracy | 2.5000000000000001E-3 | Measuring Range | 0 ... 10 bar |
| Product Series | SITRANS P220 | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 7MF1567-3CA00-1AA1 |
Specifications may be subject to change without notice
