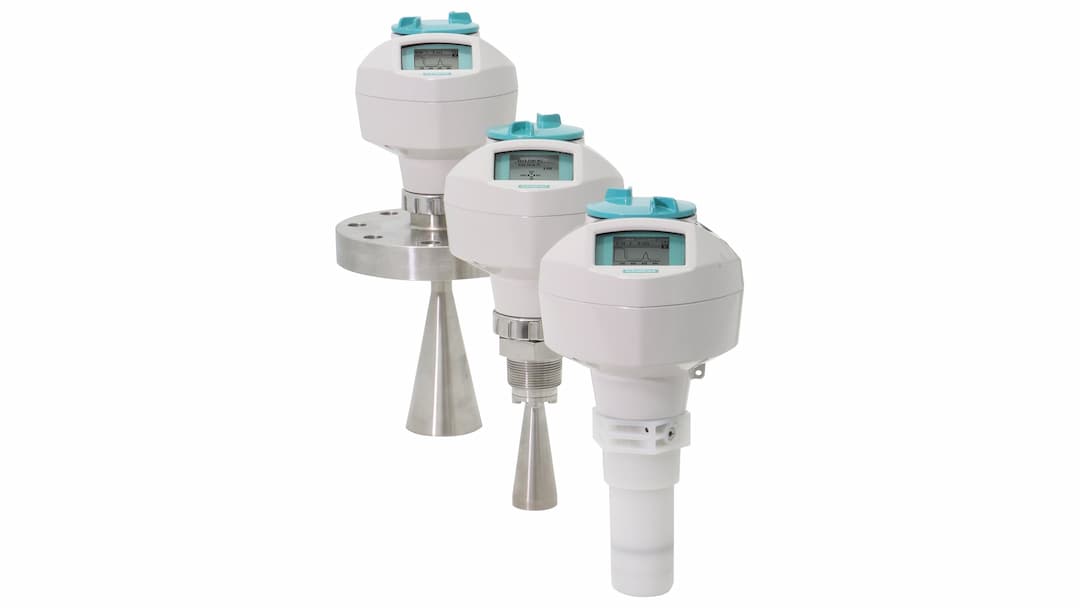

7ML5431-5QC20-0SA1
Product ID:173109
Updated: 2026/4/3
Key Features
- 1Measure liquid and slurry levels continuously up to 20 meters. 2、Withstand extreme process conditions up to 200°C and 580 PSIG. 3、Utilize 25 GHz pulse radar for precise and reliable measurements. 4、Deploy with confidence using the integrated SIL2 safety certificate. 5、Integrate seamlessly via 4-20 mA and HART communication protocols.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Pressure Range | 0.5 bar | Explosion Protection Certification | Non-explosion proof |
| Antenna Type | 3" mirror antenna | Enclosure and Electrical Connection | Aluminum / 1/2"NPT |
| Communication Method | 4~20mA/HART | Process Seal Type | DN80PN16 general flange |
| Signal Antenna | 3" aluminum horn | Product Series | SITRANS LR250 |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | EAR99 | AL | N |
| Model Number | 7ML5431-5QC20-0SA1 |
Specifications may be subject to change without notice
