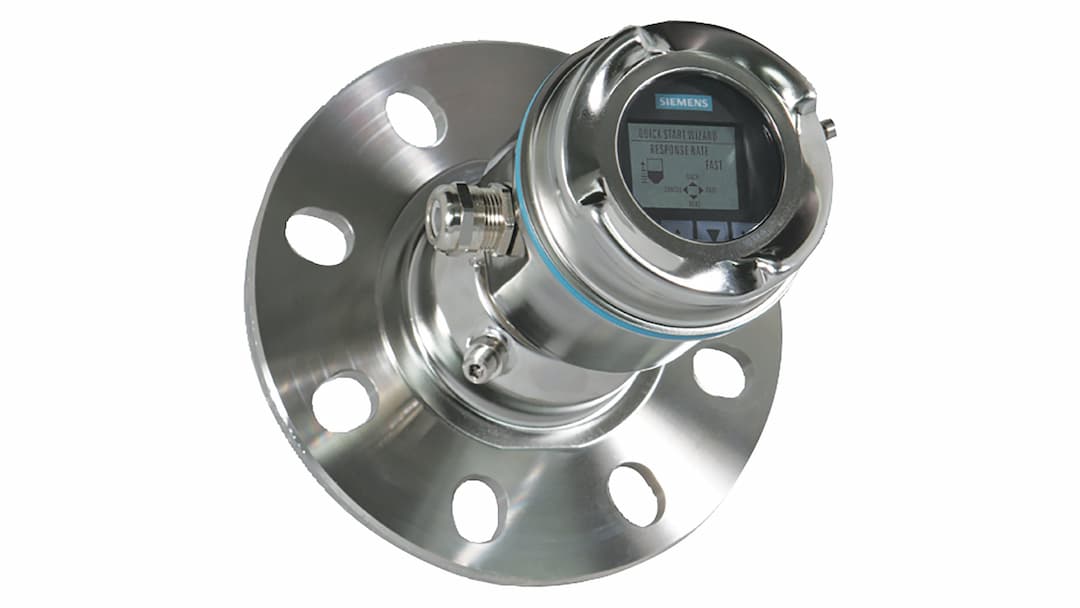

7ML5440-1HA00-1AC2
Product ID:189975
Updated: 2026/8/6
Key Features
- 1Perform continuous, non-contact radar level measurement.
- 2Monitor process data via the local display interface.
- 3Achieve measurement ranges up to 100 meters (328 ft).
- 4Install easily with a universal flat-faced flange for ANSI/DIN/JIS.
- 5Ensure durability with a Stainless Steel enclosure rated for 7.5 PSIG.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Local Display | With an LCD display | Explosion Protection Certification | Dust Intrinsically Safe + Gas Explosion Proof |
| Communication Method | 4~20mA/HART | Pressure Resistance Range | 3 bar |
| Enclosure and Electrical Interface | Stainless steel, 1/2"NPT | Process Connection | 4" flange with a targeting design |
| Range and Temperature Resistance | 100 meters, -40~200°C | Product Series | SITRANS LR560 |
| Product Lifecycle | Delivery Release (PM300) | Origin Country | Canada |
| ECCN | EAR99 | AL | N |
| Model Number | 7ML5440-1HA00-1AC2 |
Specifications may be subject to change without notice
