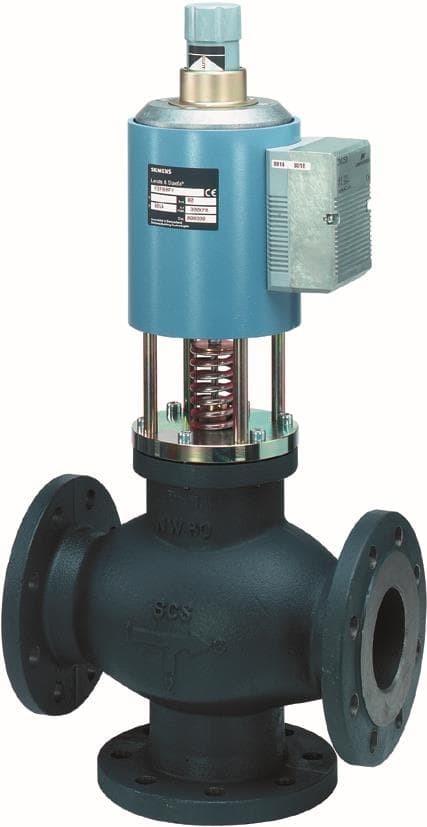

BPZ:M3P100FYP
Product ID:202520
Updated: 2026/4/3
Key Features
- 1Achieve efficient mixing with precise fluid flow control. 2、Simplify installation using the flanged PN16 design. 3、Ensure high flow rates with a Kvs 130 capacity. 4、Gain versatile control via AC 24V and DC signals. 5、Utilize mineral oil media for industrial processes.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Leakage Rate | 0.05% of kvs | Bypass Leakage Rate | 2% of kvs |
| Operating Range | DC 0…10 V | Operating Voltage | AC 24 V |
| Positioning Time | DC 0...10 V; DC 4...20 mA | Positioning Signal | DC 0...10 V; DC 4...20 mA |
| Installation Position | Vertical to the horizontal plane | Permitted Operating Pressure | 1000 kPa; 10 bar |
| Lifecycle | P.M300 | Country of Origin | Switzerland |
| ECCN | N | AL | N |
| Model | BPZ:M3P100FYP |
Specifications may be subject to change without notice
