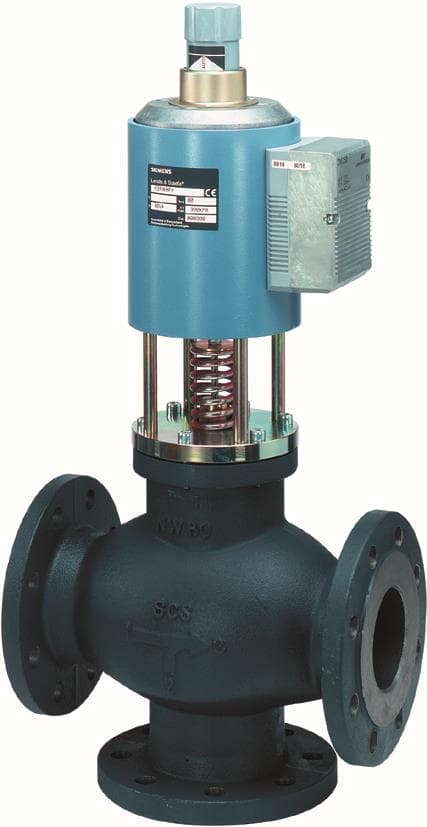

BPZ:M3P80FY
Product ID:165250
Updated: 2026/4/3
Key Features
- 1Precisely regulate flow with 0-10V modulating control. 2、Ensure reliability with a robust PN16 flange and DN80 port design. 3、Simplify maintenance via a spring-return magnetic actuator. 4、Connect seamlessly with AC 24V or DC 0/2-10V/4-20mA signals. 5、Handle high flow rates efficiently with a Cv of 93.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Leakage Rate | 0.05% of kvs | Bypass Leakage Rate | 2% of kvs |
| Operating Range | DC 0…10 V | Operating Voltage | AC 24 V |
| Positioning Time | DC 0...10 V; DC 4...20 mA | Positioning Signal | DC 0...10 V; DC 4...20 mA |
| Installation Position | Vertical to the horizontal plane | Power Consumption | 80 VA |
| Permissible Operating Pressure | 1000 kPa | Lifecycle | P.M300 |
| Country of Origin | Switzerland | ECCN | N |
| AL | N | Model | BPZ:M3P80FY |
Specifications may be subject to change without notice
