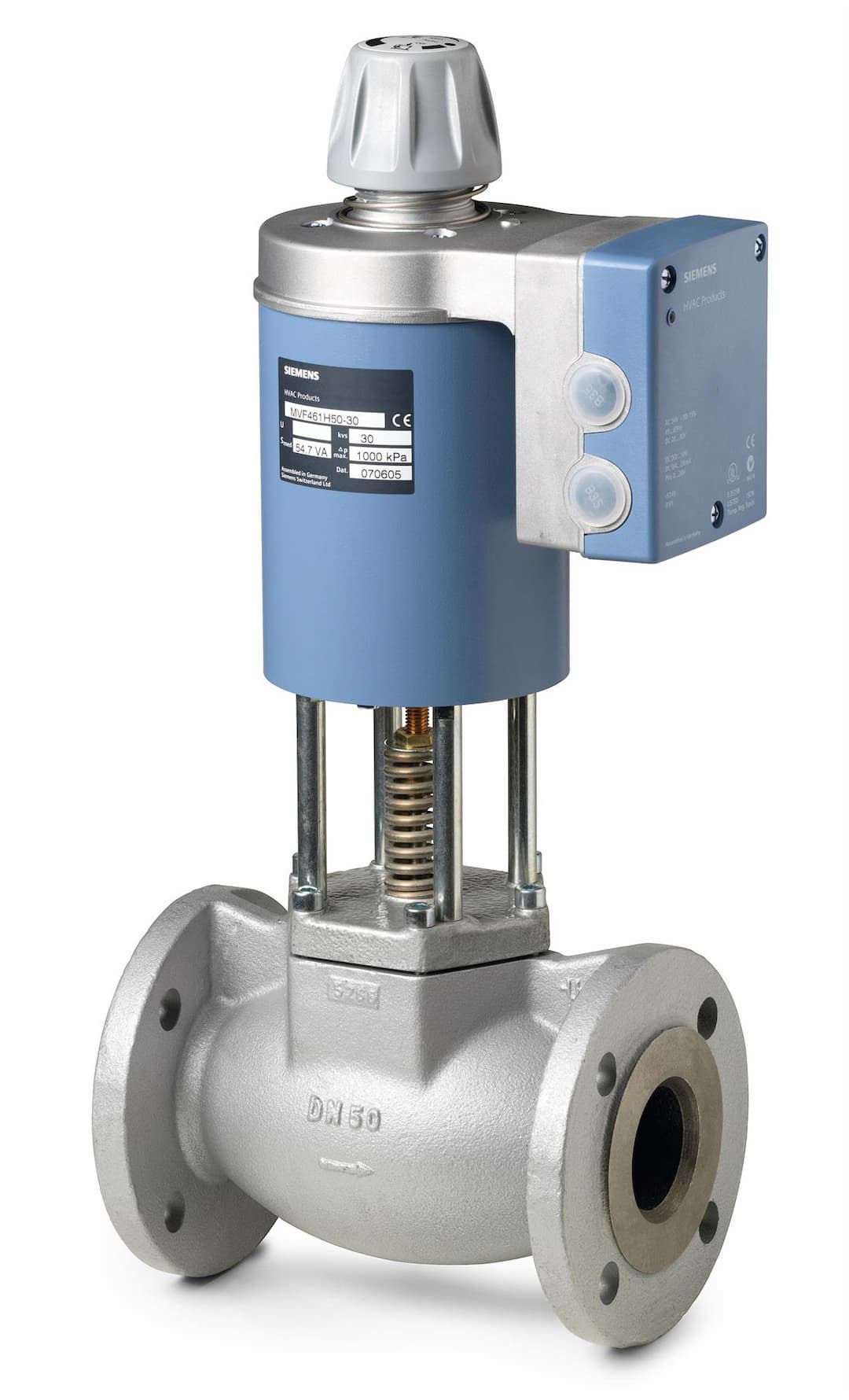

BPZ:MVF461H15-1.5
Product ID:169156
Updated: 2026/4/4
Key Features
- 1Achieve precise modulating control for steam or high-temperature hot water. 2、Operate flexibly with AC/DC 24V and analog signal compatibility. 3、Ensure reliable performance in demanding high-temperature environments. 4、Enhance safety with integrated positioning control and spring return. 5、Simplify installation and maintenance to minimize operational downtime.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Leakage Rate | 0.05% of kvs | Operating Range | DC 0…10 V; 0…20 mA; DC 2…10 V; 4…20 mA |
| Operating Voltage | AC 24 V; DC 24 V | Positioning Time | DC 0...10 V; DC 0...20 mA; DC 2...10 V; DC 4...20 mA; DC 0...20 V Phs |
| Positioning Signal | DC 0...10 V; DC 0...20 mA; DC 2...10 V; DC 4...20 mA; DC 0...20 V Phs | Installation Position | Vertical to the horizontal plane |
| Power Consumption | 33 VA | Permissible Operating Pressure | Liquid, max: 1300 kPa; Steam, max: 900 kPa |
| Lifecycle | P.M300 | Country of Origin | Switzerland |
| ECCN | N | AL | N |
| Model Number | BPZ:MVF461H15-1.5 |
Specifications may be subject to change without notice
