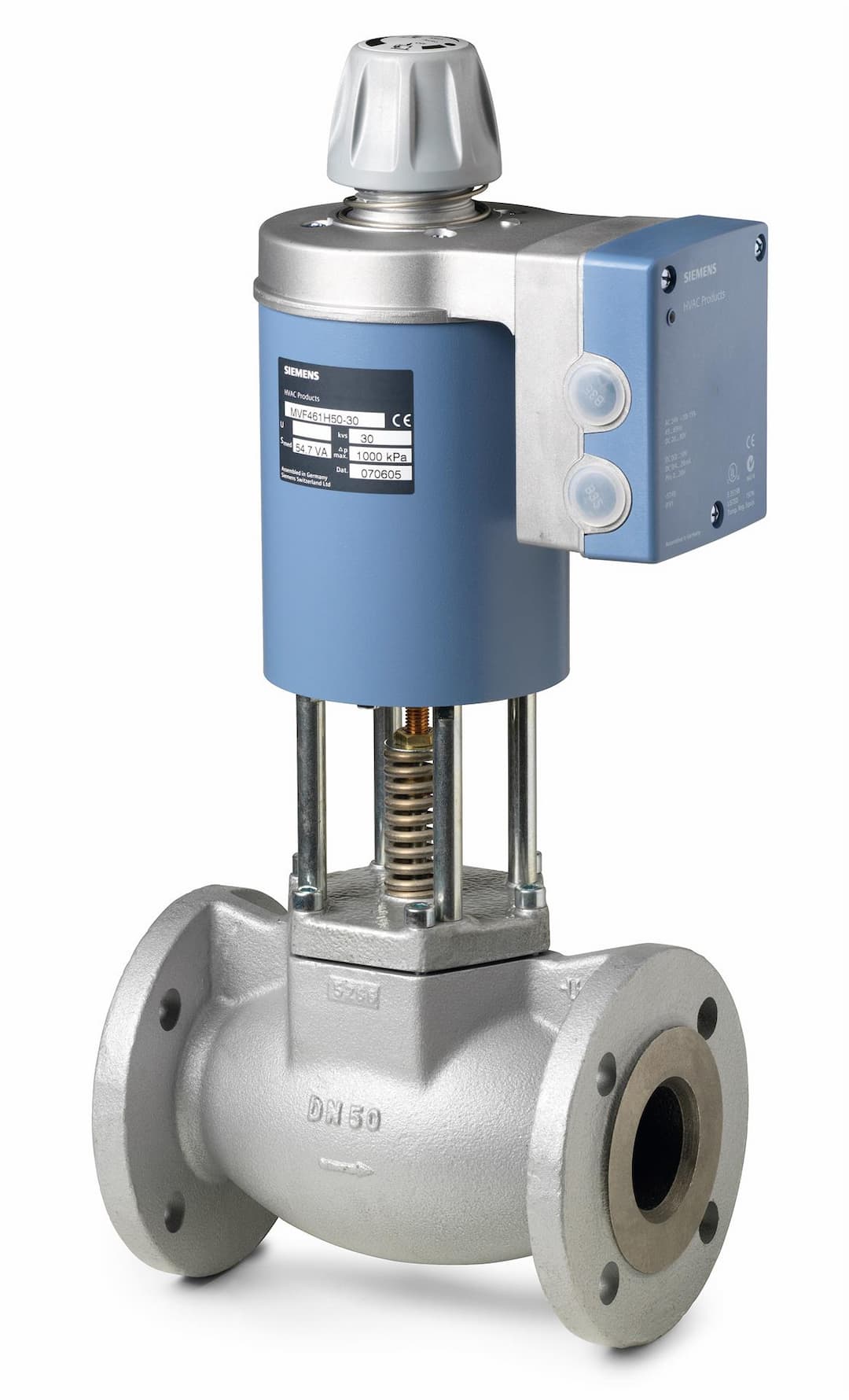

BPZ:MVF461H25-8
Product ID:214804
Updated: 2026/6/27
Key Features
- 1Achieve high-precision control with 1000:1 resolution and rangeability.
- 2Benefit from fast positioning in under 2 seconds for quick response.
- 3Select the optimal valve characteristic for your specific performance needs.
- 4Connect easily with universal AC/DC 24 V and 0/2-10 V / 4-20 mA signals.
- 5Ensure reliable operation with a robust PN16 DN25 flange and kvs 8 design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Leakage Rate | 0.05% of kvs | Operating Range | DC 0…10 V; 0…20 mA; DC 2…10 V; 4…20 mA |
| Operating Voltage | AC 24 V; DC 24 V | Positioning Time | DC 0...10 V; DC 0...20 mA; DC 2...10 V; DC 4...20 mA; DC 0...20 V Phs |
| Positioning Signal | DC 0...10 V; DC 0...20 mA; DC 2...10 V; DC 4...20 mA; DC 0...20 V Phs | Installation Position | Vertical to the horizontal plane |
| Power Consumption | 33 VA | Permissible Operating Pressure | Liquid, max: 1300 kPa; Steam, max: 900 kPa |
| Lifecycle | P.M300 | Country of Origin | Switzerland |
| ECCN | N | AL | N |
| Model Number | BPZ:MVF461H25-8 |
Specifications may be subject to change without notice
