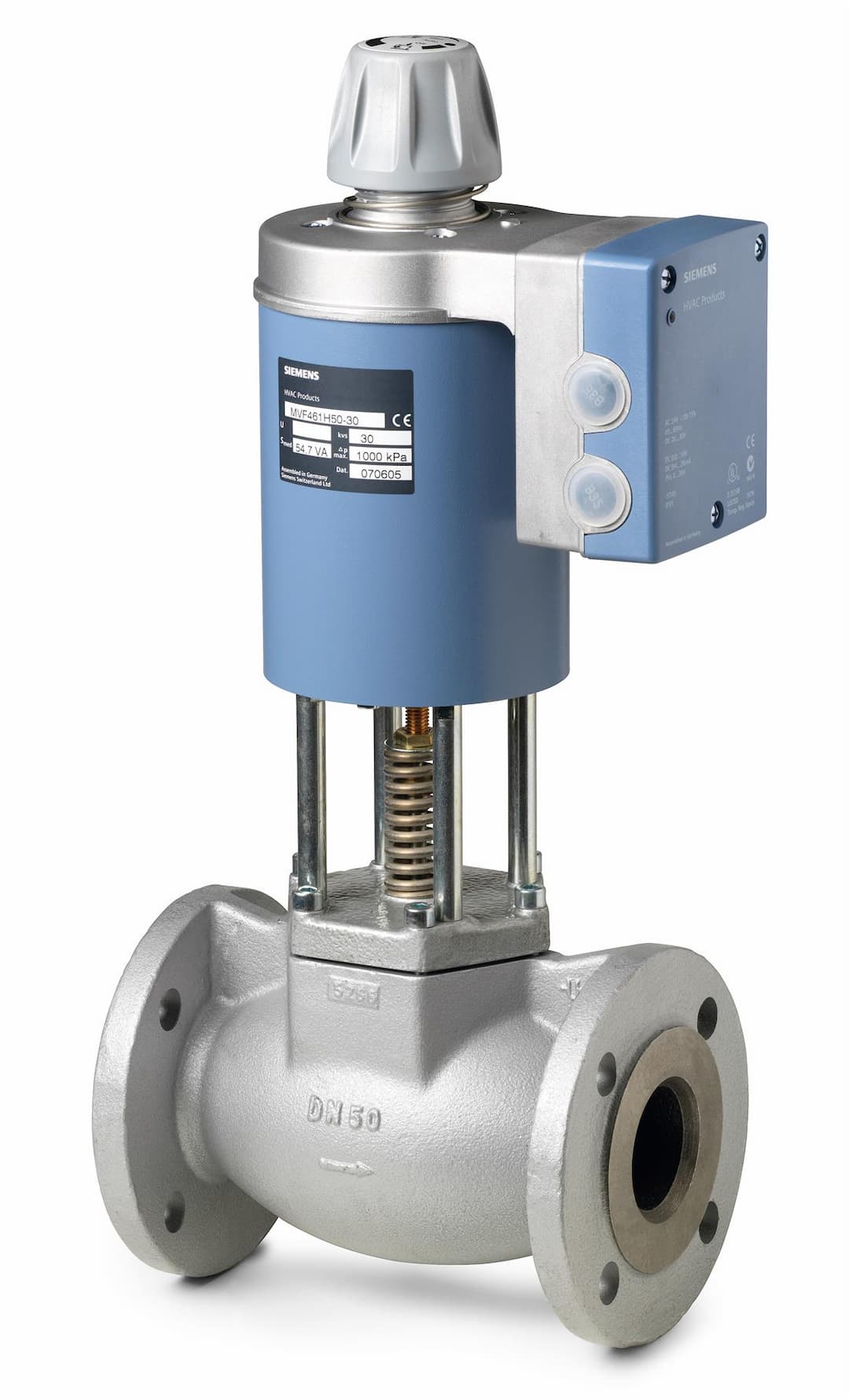

BPZ:MVF461H32-12
Product ID:164647
Updated: 2026/7/3
Key Features
- 1Achieve fast positioning in under 2 seconds for rapid process response.
- 2Select valve characteristic to customize performance for your specific application.
- 3Benefit from high 1000:1 resolution for precise steam flow control.
- 4Connect easily with AC/DC 24V and DC 0/2...10V/0/4...20mA signal compatibility.
- 5Install quickly using the robust PN16 DN32 flange design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Leakage Rate | 0.05% of kvs | Operating Range | DC 0…10 V; 0…20 mA; DC 2…10 V; 4…20 mA |
| Operating Voltage | AC 24 V; DC 24 V | Positioning Time | DC 0...10 V; DC 0...20 mA; DC 2...10 V; DC 4...20 mA; DC 0...20 V Phs |
| Positioning Signal | DC 0...10 V; DC 0...20 mA; DC 2...10 V; DC 4...20 mA; DC 0...20 V Phs | Installation Position | Vertical to the horizontal plane |
| Power Consumption | 43 VA | Permissible Operating Pressure | Liquid, max: 1300 kPa; Steam, max: 900 kPa |
| Lifecycle | P.M300 | Country of Origin | Switzerland |
| ECCN | N | AL | N |
| Model Number | BPZ:MVF461H32-12 |
Specifications may be subject to change without notice
