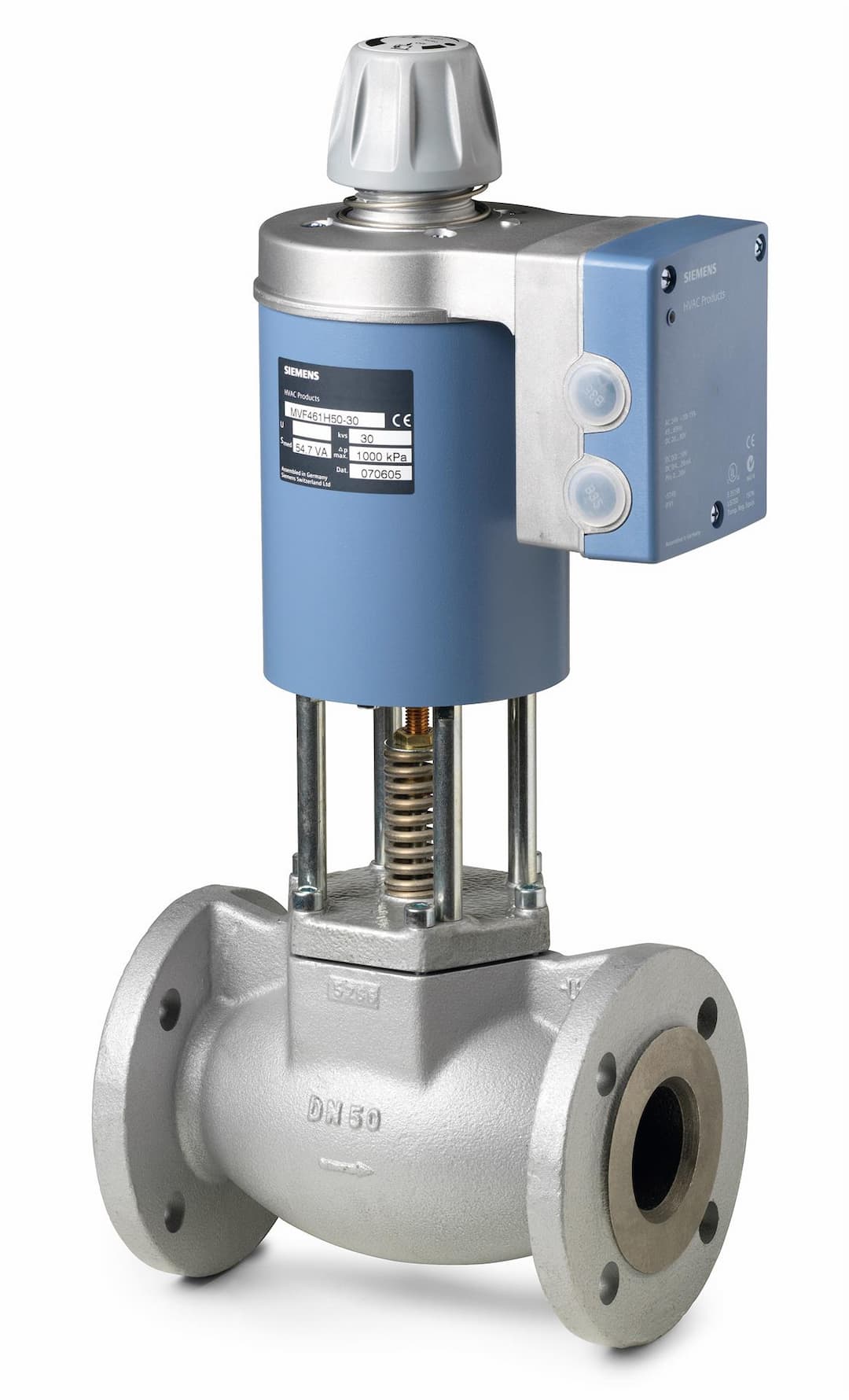

BPZ:MVF461H40-20
Product ID:192821
Updated: 2026/4/3
Key Features
- 1Operate reliably in high temperatures from 34°F to 356°F (1°C to 180°C). 2、Select between equal percentage or linear flow characteristics. 3、Achieve precise control with high rangeability across flow rates. 4、Ensure accurate, wear-free positioning via inductive stroke measurement. 5、Benefit from spring return failsafe closed design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Leakage Rate | 0.05% of kvs | Operating Range | DC 0…10 V; 0…20 mA; DC 2…10 V; 4…20 mA |
| Operating Voltage | AC 24 V; DC 24 V | Positioning Time | DC 0...10 V; DC 0...20 mA; DC 2...10 V; DC 4...20 mA; DC 0...20 V Phs |
| Positioning Signal | DC 0...10 V; DC 0...20 mA; DC 2...10 V; DC 4...20 mA; DC 0...20 V Phs | Installation Position | Vertical to the horizontal plane |
| Power Consumption | 65 VA | Permissible Operating Pressure | Liquid, max: 1300 kPa; Steam, max: 900 kPa |
| Lifecycle | P.M300 | Country of Origin | Switzerland |
| ECCN | N | AL | N |
| Model Number | BPZ:MVF461H40-20 |
Specifications may be subject to change without notice
