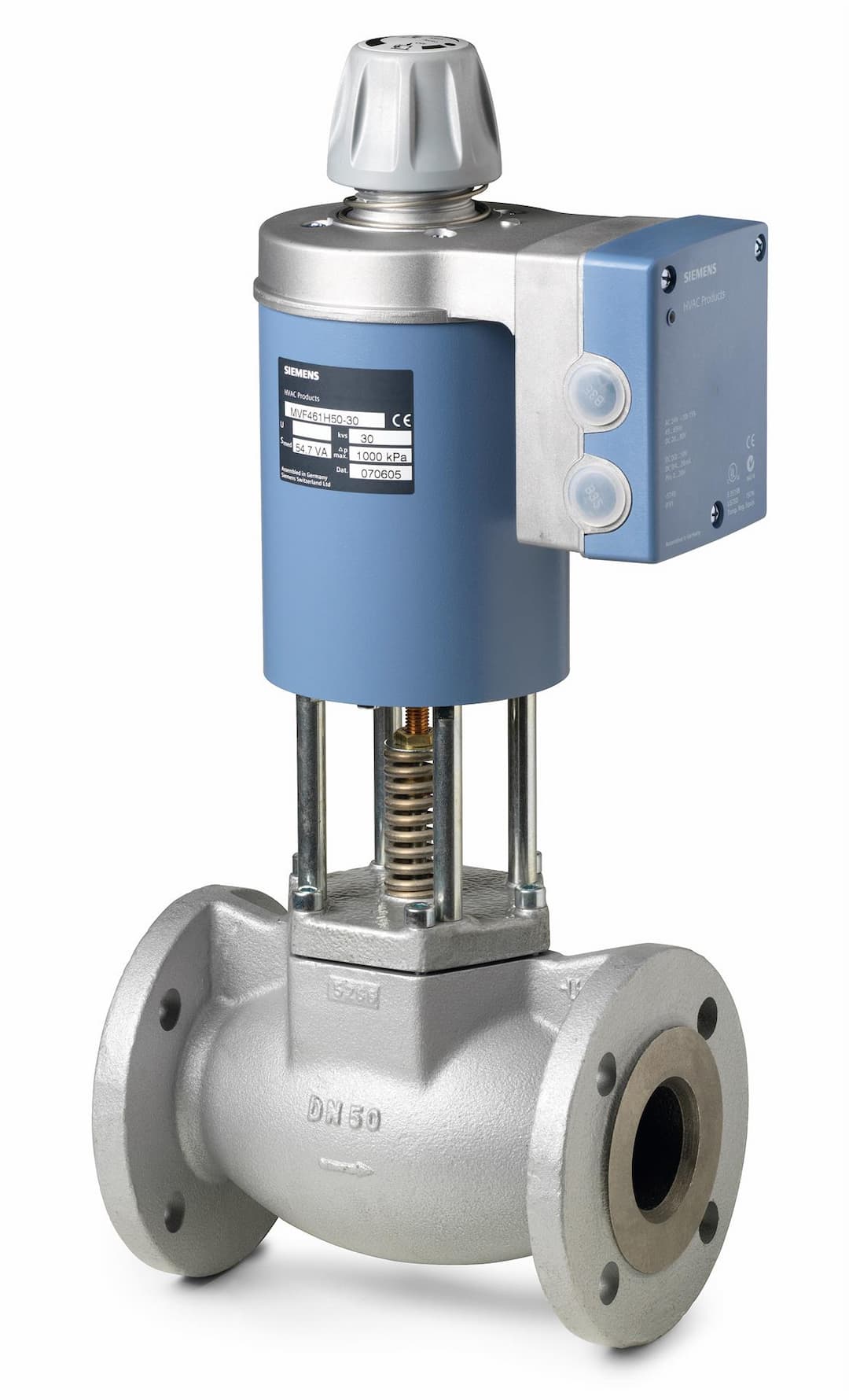

BPZ:MVF461H50-30
Product ID:197702
Updated: 2026/4/3
Key Features
- 1Achieve high-precision control for hot water and steam systems. 2、Benefit from fast positioning under two seconds for quick response. 3、Select from standard interfaces to simplify system integration. 4、Utilize wear-free inductive stroke measurement for enhanced durability. 5、Ensure safe operation with a spring-return fails-closed mechanism.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Leakage Rate | 0.05% of kvs | Operating Range | DC 0…10 V; 0…20 mA; DC 2…10 V; 4…20 mA |
| Operating Voltage | AC 24 V; DC 24 V | Positioning Time | DC 0...10 V; DC 0...20 mA; DC 2...10 V; DC 4...20 mA; DC 0...20 V Phs |
| Positioning Signal | DC 0...10 V; DC 0...20 mA; DC 2...10 V; DC 4...20 mA; DC 0...20 V Phs | Installation Position | Vertical to the horizontal plane |
| Power Consumption | 65 VA | Permissible Operating Pressure | Liquid, max: 1300 kPa; Steam, max: 900 kPa |
| Lifecycle | P.M300 | Country of Origin | Switzerland |
| ECCN | N | AL | N |
| Model Number | BPZ:MVF461H50-30 |
Specifications may be subject to change without notice
