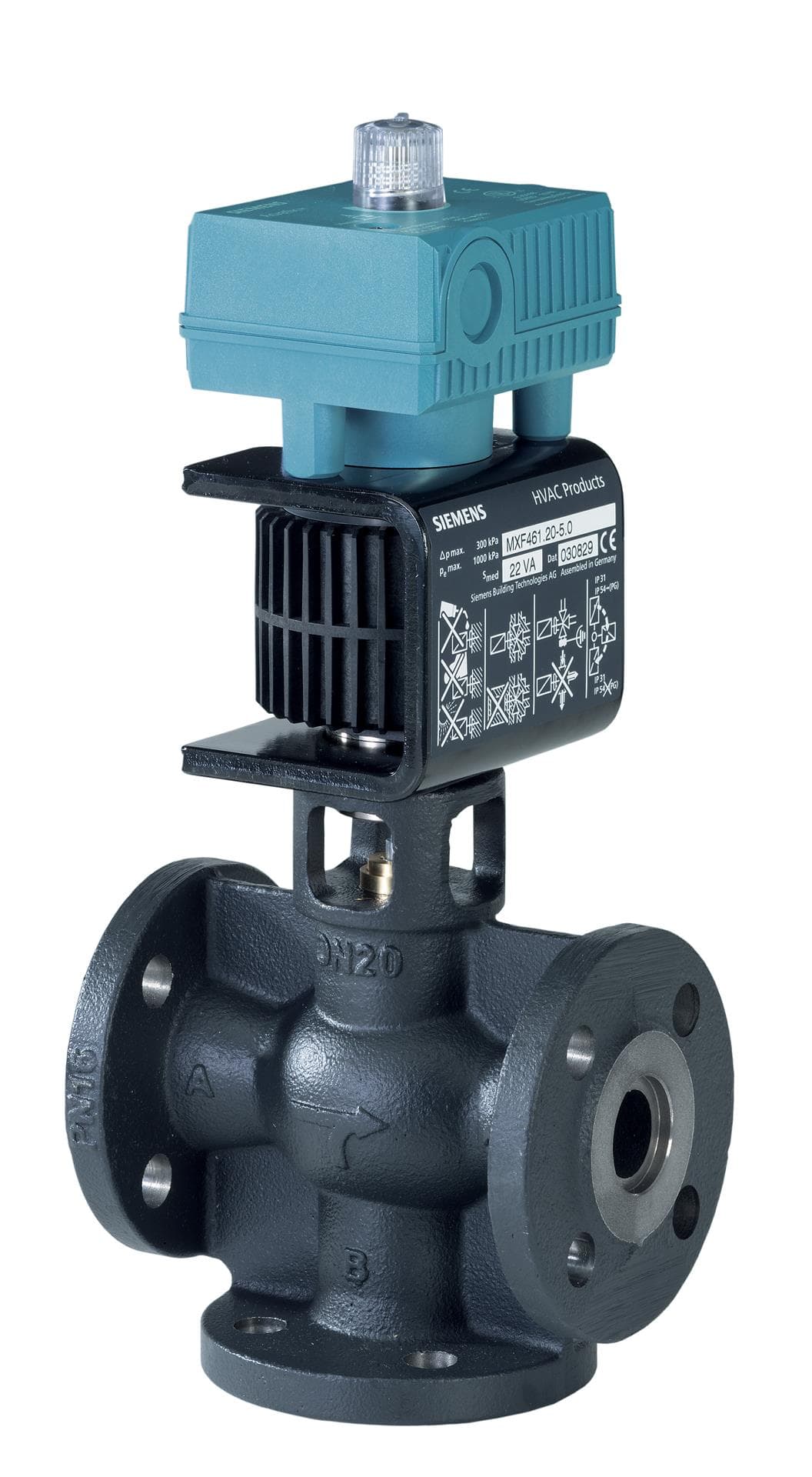

BPZ:MXF461.15-3.0
Product ID:186010
Updated: 2026/4/3
Key Features
- 1Achieve precise modulating control for chilled or low-temperature hot water systems. 2、Utilize a reliable and efficient magnetic actuator for consistent operation. 3、Monitor and adjust valve position in real-time with integrated positioning control. 4、Ensure safety with an automatic spring return to the default position. 5、Meet stringent safety standards with UL-listed certification for HVAC use.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Leakage Rate | 0.02% of kvs | Bypass Leakage Rate | 0.2% of kvs |
| Operating Range | DC 0…10 V | Operating Voltage | AC 24 V; DC 24 V |
| Positioning Time | DC 0...10 V; DC 2...10 V; DC 4...20 mA | Positioning Signal | DC 0...10 V; DC 2...10 V; DC 4...20 mA |
| Installation Position | Vertical to the horizontal plane | Power Consumption | 29 VA |
| Permissible Operating Pressure | 1000 kPa | Lifecycle | P.M300 |
| Country of Origin | Switzerland | ECCN | N |
| AL | N | Model | BPZ:MXF461.15-3.0 |
Specifications may be subject to change without notice
