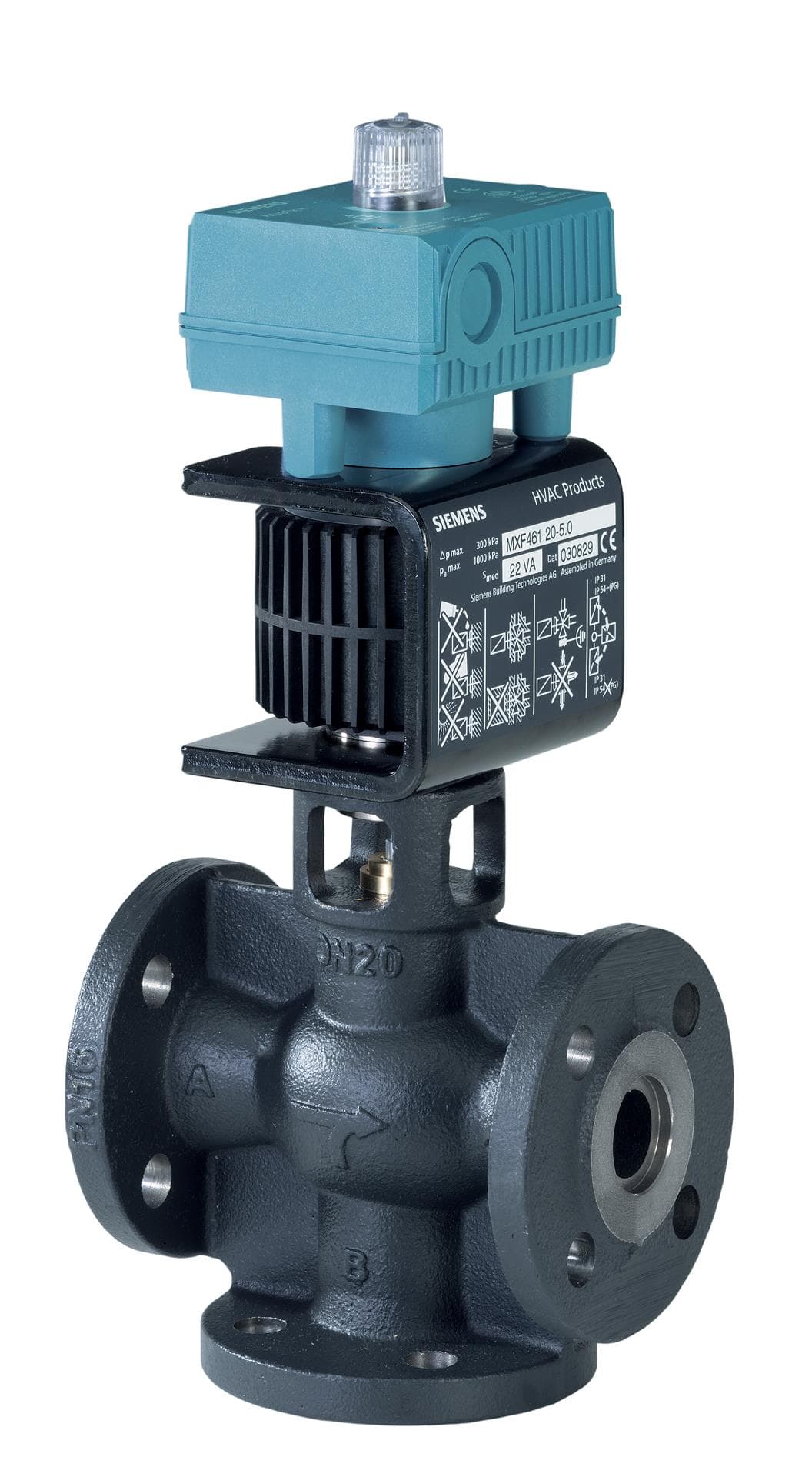

BPZ:MXF461.25-8.0
Product ID:162578
Updated: 2026/4/4
Key Features
- 1Achieve precise modulation for chilled or low-temperature hot water systems. 2、Utilize a reliable magnetic actuator for efficient control with minimal maintenance. 3、Benefit from accurate positioning feedback for optimal system performance. 4、Ensure safe operation with a spring return function during power failure. 5、Perform easy manual override for quick adjustments and troubleshooting.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Leakage Rate | 0.02% of kvs | Bypass Leakage Rate | 0.2% of kvs |
| Operating Range | DC 0…10 V | Operating Voltage | AC 24 V; DC 24 V |
| Positioning Time | DC 0...10 V; DC 2...10 V; DC 4...20 mA | Positioning Signal | DC 0...10 V; DC 2...10 V; DC 4...20 mA |
| Installation Position | Perpendicular to the horizontal plane | Power Consumption | 29 VA |
| Permissible Operating Pressure | 1000 kPa | Lifecycle | P.M300 |
| Country of Origin | Switzerland | ECCN | N |
| AL | N | Model | BPZ:MXF461.25-8.0 |
Specifications may be subject to change without notice
