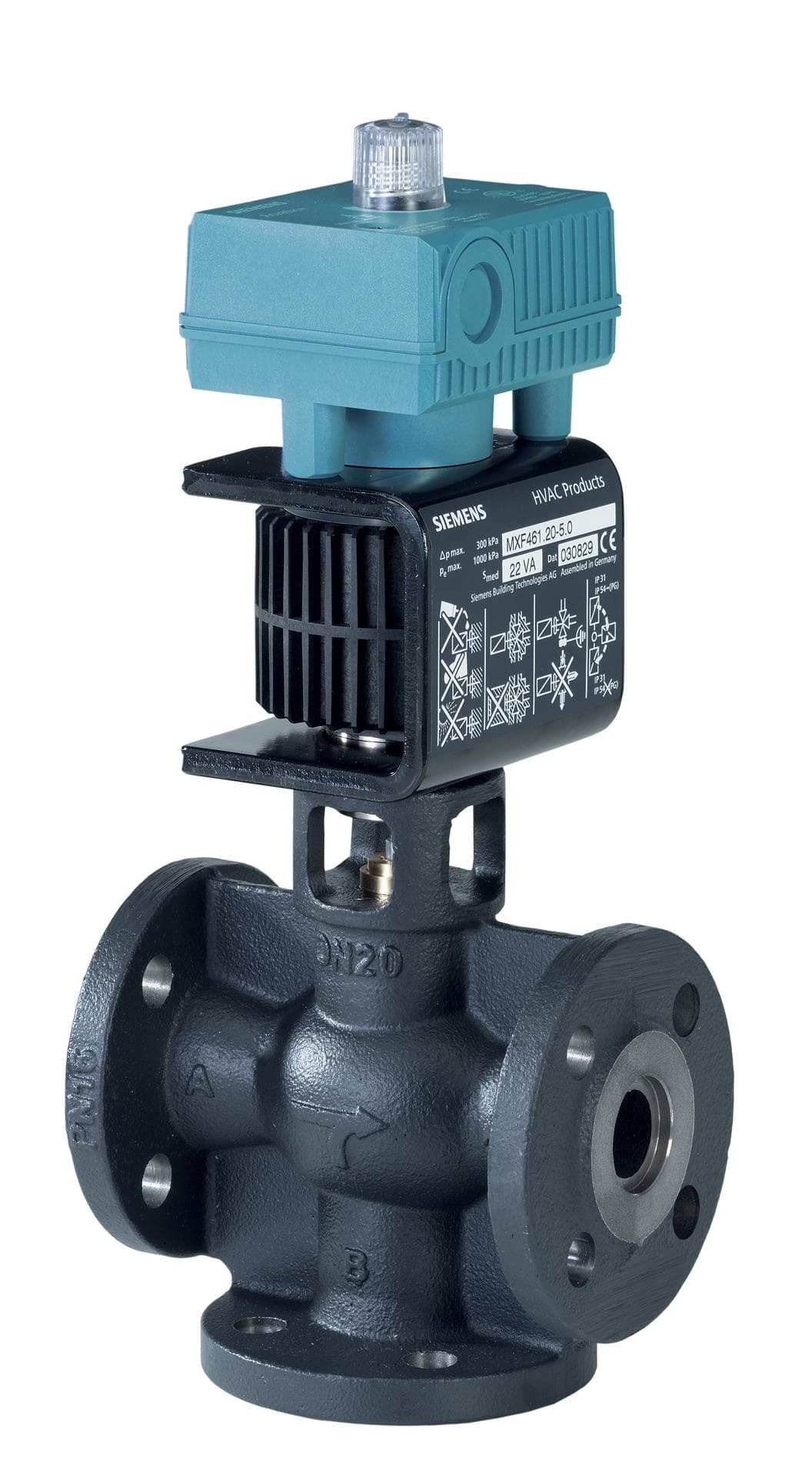

BPZ:MXF461.32-12
Product ID:117008
Updated: 2026/4/3
Key Features
- 1Precisely modulate chilled or low-temperature hot water systems. 2、Utilize versatile AC/DC 24V and DC 0/2...10V/4...20mA power supply. 3、Ensure reliable performance with robust PN16 flanged construction. 4、Integrate easily with compact dimensions of 180mm width and 375mm height. 5、Leverage the trusted reliability of the Siemens brand.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Leakage Rate | 0.02% of kvs | Bypass Leakage Rate | 0.2% of kvs |
| Operating Range | DC 0…10 V | Operating Voltage | AC 24 V; DC 24 V |
| Positioning Time | DC 0...10 V; DC 2...10 V; DC 4...20 mA | Positioning Signal | DC 0...10 V; DC 2...10 V; DC 4...20 mA |
| Installation Position | Vertical to the horizontal plane | Power Consumption | 29 VA |
| Permissible Operating Pressure | 1000 kPa | Lifecycle | P.M300 |
| Country of Origin | Switzerland | ECCN | N |
| AL | N | Model | BPZ:MXF461.32-12 |
Specifications may be subject to change without notice
