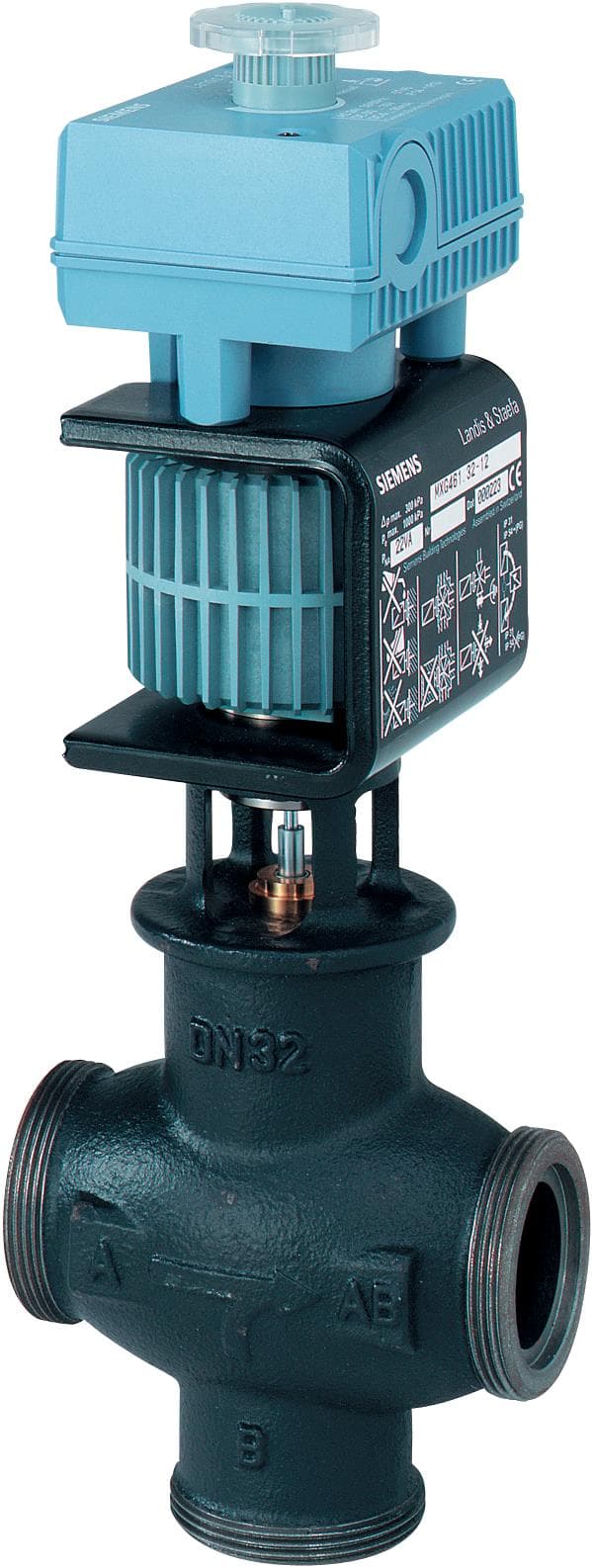

BPZ:MXG461.15-0.6
Product ID:114440
Updated: 2026/4/3
Key Features
- 1Ensure precise control with DC 0-10V/4-20mA positioning signals. 2、Rely on durable construction using high-quality CrNi steel. 3、Apply it flexibly in both general and industrial HVAC plants. 4、Meet safety standards with its UL-listed certification. 5、Simplify installation via an externally threaded design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Leakage Rate | 0.02% of kvs | Bypass Leakage Rate | 0.2% of kvs |
| Operating Range | DC 0…10 V | Operating Voltage | AC 24 V; DC 24 V |
| Positioning Time | DC 0...10 V; DC 2...10 V; DC 4...20 mA | Positioning Signal | DC 0...10 V; DC 2...10 V; DC 4...20 mA |
| Installation Position | Vertical to the horizontal plane | Power Consumption | 29 VA |
| Permissible Operating Pressure | 1000 kPa | Lifecycle | P.M300 |
| Country of Origin | Switzerland | ECCN | N |
| AL | N | Model Number | BPZ:MXG461.15-0.6 |
Specifications may be subject to change without notice
