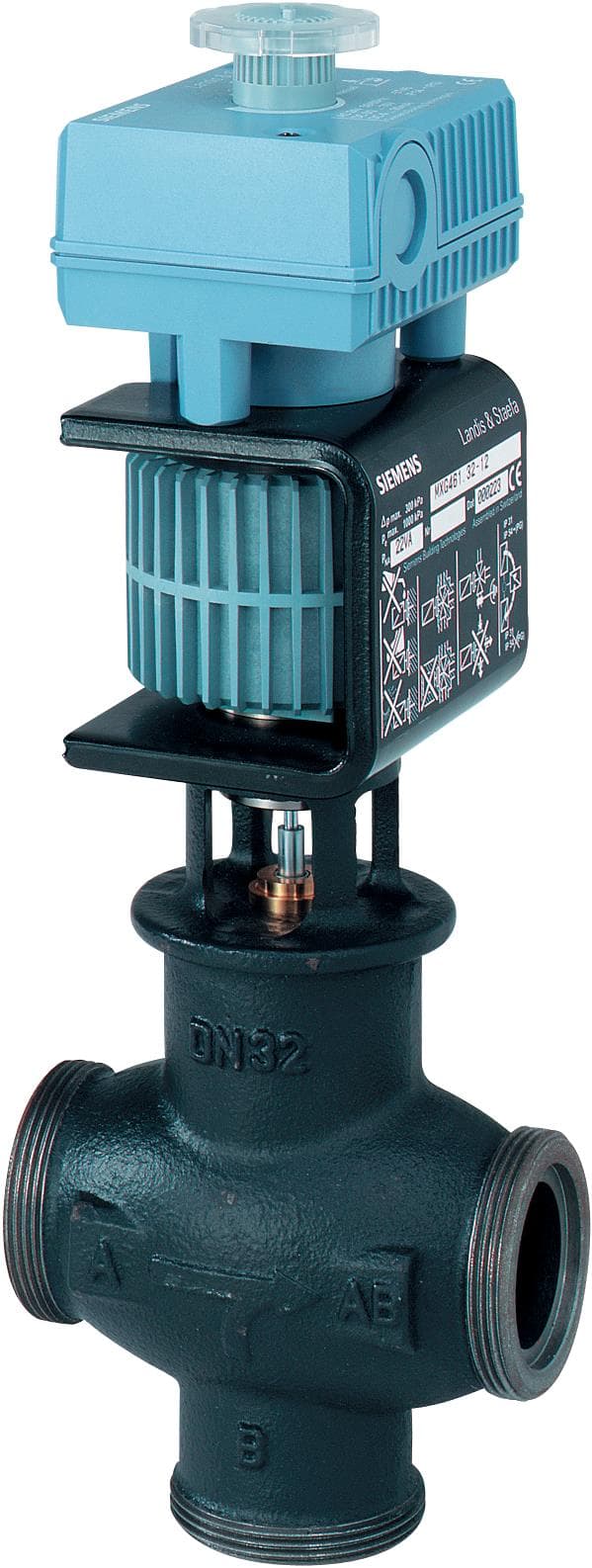

BPZ:MXG461.32-12
Product ID:221814
Updated: 2026/4/3
Key Features
- 1Modulate chilled or low-temperature hot water systems with high precision. 2、Utilize a reliable magnetic actuator for efficient control. 3、Monitor system status accurately with position feedback signal. 4、Ensure safe operation via the spring return function. 5、Meet UL listing standards for safety and reliability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Leakage Rate | 0.02% of kvs | Bypass Leakage Rate | 0.2% of kvs |
| Operating Range | DC 0…10 V | Operating Voltage | AC 24 V; DC 24 V |
| Positioning Time | DC 0...10 V; DC 2...10 V; DC 4...20 mA | Positioning Signal | DC 0...10 V; DC 2...10 V; DC 4...20 mA |
| Installation Position | Vertical to the horizontal plane | Power Consumption | 29 VA |
| Permissible Operating Pressure | 1000 kPa | Lifecycle | P.M300 |
| Country of Origin | Switzerland | ECCN | N |
| AL | N | Model Number | BPZ:MXG461.32-12 |
Specifications may be subject to change without notice
