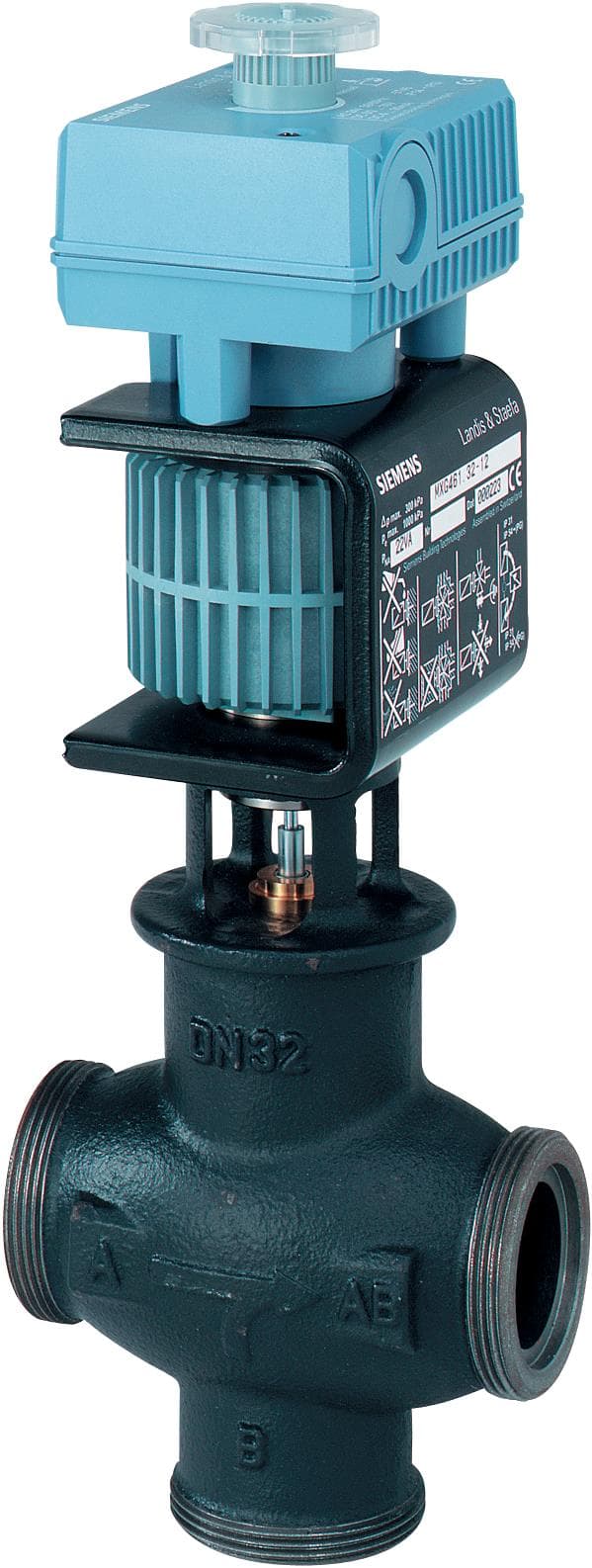

BPZ:MXG461.50-30
Product ID:211186
Updated: 2026/4/3
Key Features
- 1Achieve precise modulation with a high stroke resolution of 1:1000. 2、Ensure durability with a cast iron EN-GJL-250 valve body. 3、Gain versatile control via DC 0...10, 2...10, or 4..20 V signals. 4、Operate reliably across a wide -5°C to 45°C ambient range. 5、Minimize leakage with a rate under 0.02% of kvs value.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Leakage Rate | 0.02% of kvs | Bypass Leakage Rate | 0.2% of kvs |
| Operating Range | DC 0…10 V | Operating Voltage | AC 24 V; DC 24 V |
| Positioning Time | DC 0...10 V; DC 2...10 V; DC 4...20 mA | Positioning Signal | DC 0...10 V; DC 2...10 V; DC 4...20 mA |
| Installation Position | Vertical to the horizontal plane | Power Consumption | 44 VA |
| Permitted Operating Pressure | 1000 kPa | Lifecycle | P.M300 |
| Country of Origin | Switzerland | ECCN | N |
| AL | N | Model Number | BPZ:MXG461.50-30 |
Specifications may be subject to change without notice
