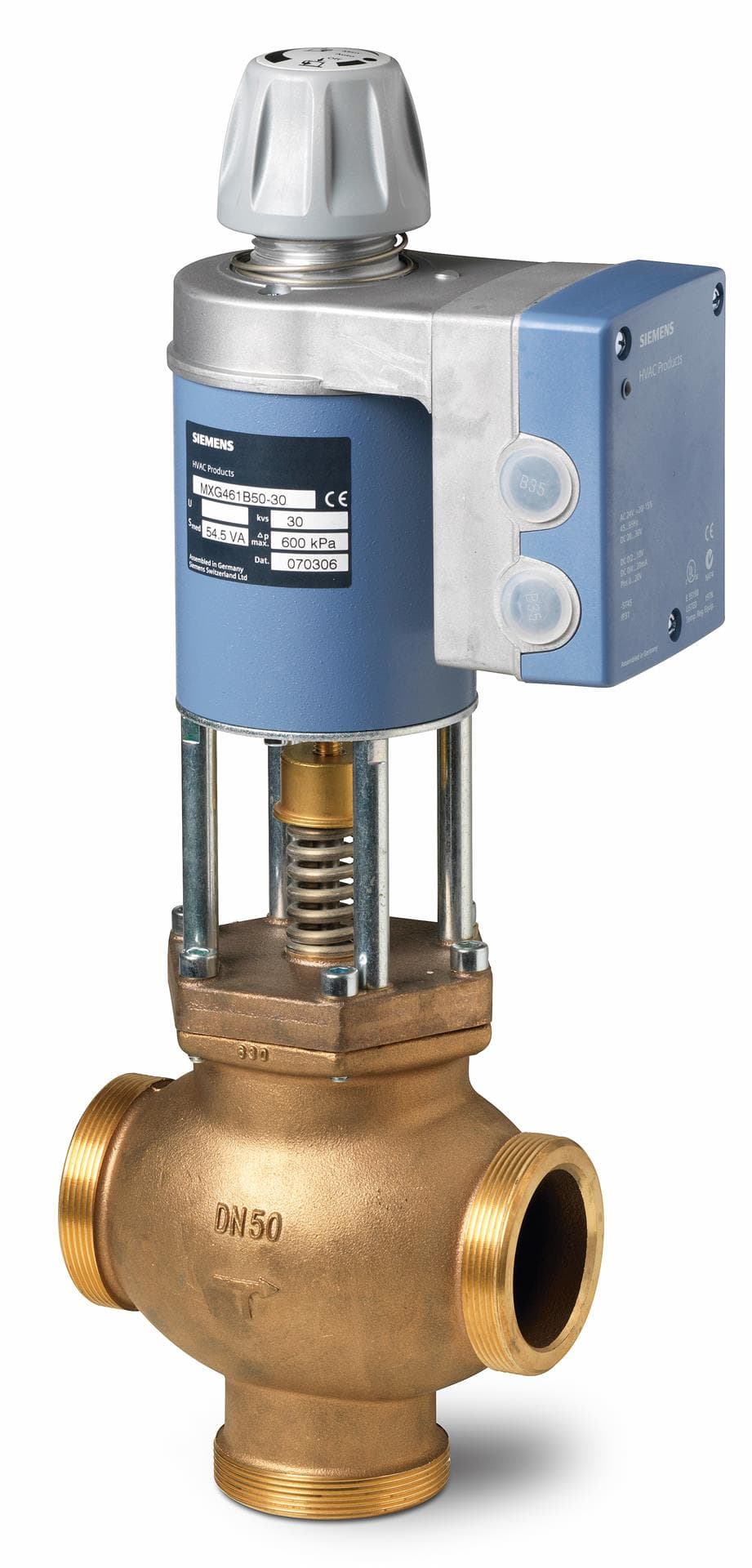

BPZ:MXG461B15-3
Product ID:224311
Updated: 2026/6/15
Key Features
- 1Deliver precise temperature control for HVAC systems.
- 2Utilize a magnetic actuator for smooth, reliable operation.
- 3Provide position feedback to enhance control accuracy.
- 4Feature a spring-return function for automatic power-failure reset.
- 5Meet UL listing standards for safety and reliability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Leakage Rate | 0.05% of kvs | Bypass Leakage Rate | 0.2% of kvs |
| Operating Range | DC 0…10 V; 0…20 mA; DC 2…10 V; 4…20 mA | Operating Voltage | AC 24 V; DC 20…30 V |
| Positioning Time | DC 0...10 V; DC 2...10 V; DC 4...20 mA; DC 0...20 mA; DC 0...20 V Phs | Positioning Signal | DC 0...10 V; DC 2...10 V; DC 4...20 mA; DC 0...20 mA; DC 0...20 V Phs |
| Installation Position | Vertical to the horizontal plane | Power Consumption | 33 VA |
| Permissible Operating Pressure | 1600 kPa | Lifecycle | P.M300 |
| Country of Origin | Switzerland | ECCN | N |
| AL | N | Model Number | BPZ:MXG461B15-3 |
Specifications may be subject to change without notice
