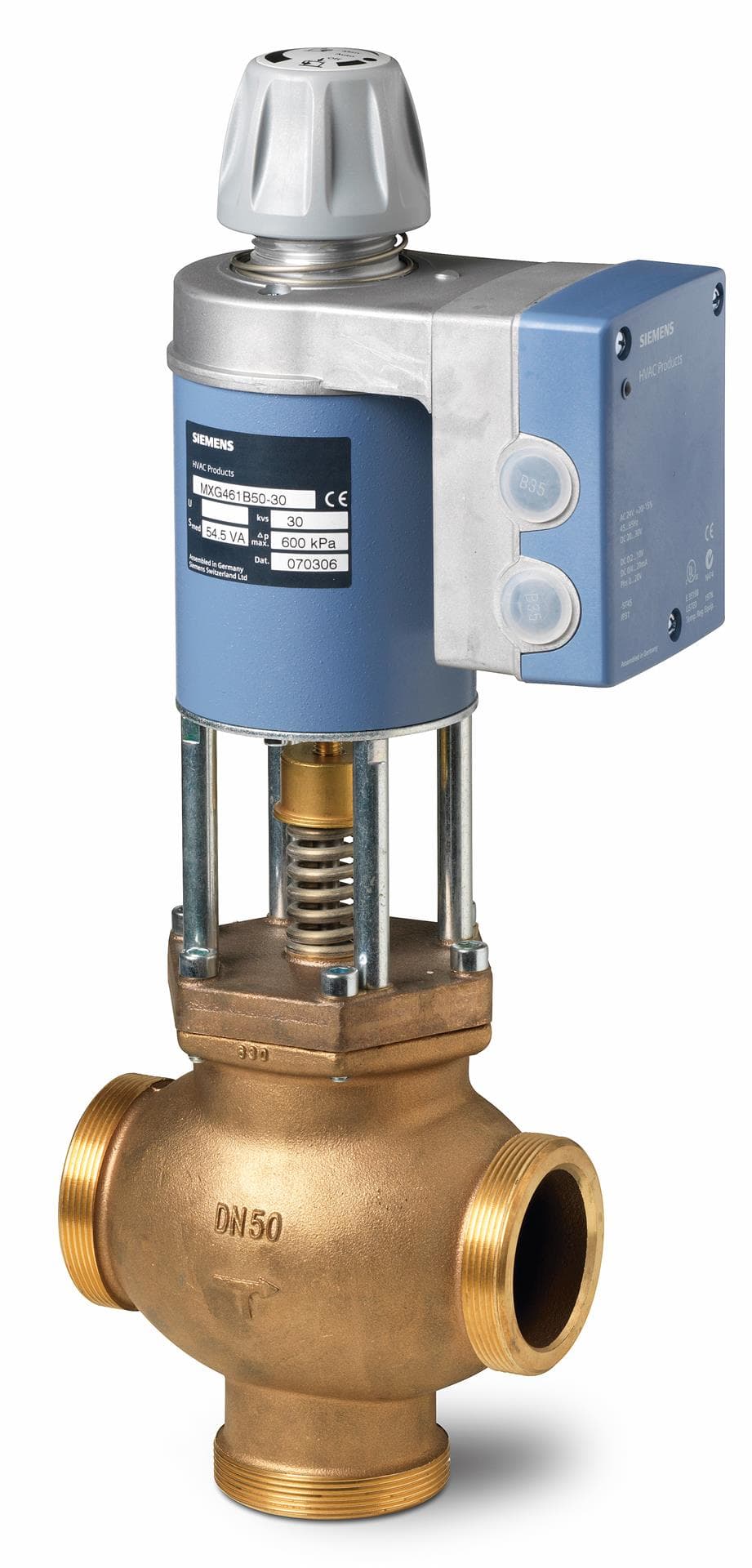

BPZ:MXG461B20-5
Product ID:156736
Updated: 2026/7/2
Key Features
- 1Deliver precise mixing control for optimal HVAC temperature regulation.
- 2Serve versatile applications with external thread, PN16, and DN20 configurations.
- 3Ensure reliable, long-lasting operation with high-quality materials.
- 4Simplify installation via an external thread design to reduce time and cost.
- 5Access comprehensive Siemens support for seamless integration and operation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Leakage Rate | 0.05% of kvs | Bypass Leakage Rate | 0.2% of kvs |
| Operating Range | DC 0…10 V; 0…20 mA; DC 2…10 V; 4…20 mA | Operating Voltage | AC 24 V; DC 20…30 V |
| Positioning Time | DC 0...10 V; DC 2...10 V; DC 4...20 mA; DC 0...20 mA; DC 0...20 V Phs | Positioning Signal | DC 0...10 V; DC 2...10 V; DC 4...20 mA; DC 0...20 mA; DC 0...20 V Phs |
| Installation Position | Vertical to the horizontal plane | Power Consumption | 33 VA |
| Permissible Operating Pressure | 1600 kPa | Lifecycle | P.M300 |
| Country of Origin | Switzerland | ECCN | N |
| AL | N | Model Number | BPZ:MXG461B20-5 |
Specifications may be subject to change without notice
