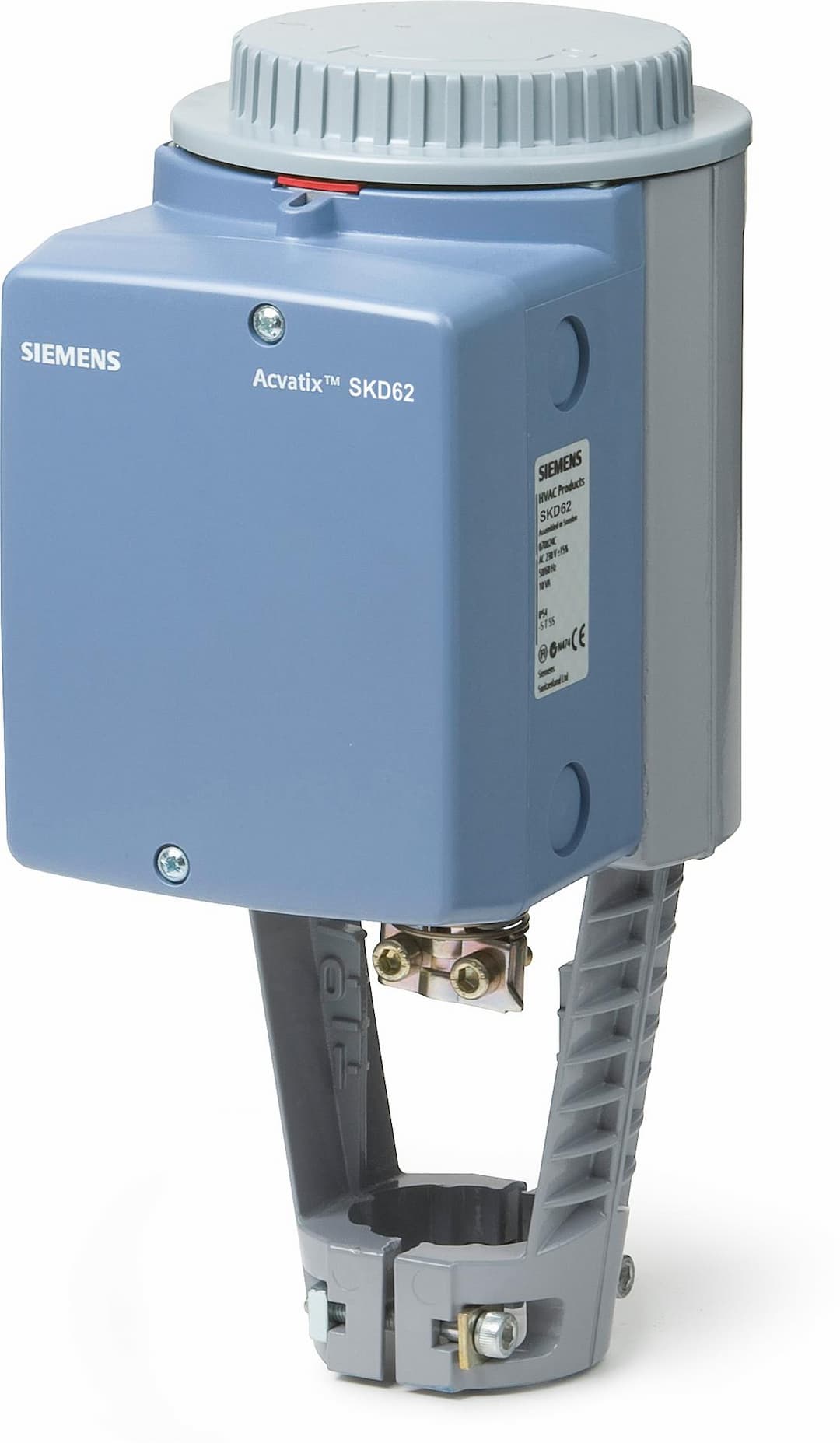

BPZ:SKD62
Product ID:140213
Updated: 2026/4/3
Key Features
- 1Deliver precise valve positioning for HVAC systems. 2、Provide 1000N force for smooth and efficient operation. 3、Mount in any position from upright to horizontal. 4、Feature fast 15s close and 30s open times. 5、Offer IP54 protection for challenging industrial environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Operating Range | DC 0…10 V; 4…20 mA | Operating Voltage | AC 24 V |
| Positioning Time | 0...1000 Ohm; DC 0...10 V; DC 4...20 mA | Positioning Signal | 0...1000 Ohm; DC 0...10 V; DC 4...20 mA |
| Installation Position | Perpendicular to the horizontal plane | Power Consumption | 17 VA |
| Lifecycle | P.M300 | Country of Origin | Switzerland |
| ECCN | N | AL | N |
| Model | BPZ:SKD62 |
Specifications may be subject to change without notice
