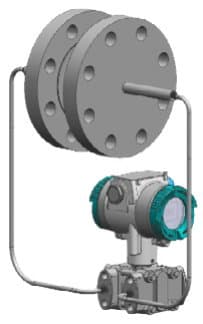

DP WITH REMOTE SEAL
Product ID:168270
Updated: 2026/8/16
Key Features
- 1Eliminate direct contact between the transmitter and corrosive or viscous media.
- 2Configure individually for perfect adaptation to specific operating conditions.
- 3Select from many versions to suit diverse industrial applications.
- 4Utilize quick-release versions for rapid cleaning in food & beverage.
- 5Deploy in difficult conditions including high temperatures and aggressive media.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Head Protection Rating | With | Terminal Protection Rating | Gas, liquid, and vapor resistant to corrosion and non-corrosion |
| Bracket | Carbon Steel Bracket | Display | With |
| Cable and Plug Material | Plastic | Electrical Connection | 1/2-14 NPT |
| Explosion Protection Type | Non-Explosion Proof | Enclosure Material | Cast Aluminum |
| Capillary Configuration | 3 meters on each side | Filling Liquid | High-Temperature Silicone Oil |
| Wetted Materials | 316L Stainless Steel | Process Connection | Dual Flanges, EN 1092 DN80 PN40 Form B1 |
| Ambient Temperature | -10 … 85℃ | Process Temperature | -10 … 400℃ |
| Measuring Range | 0 … 60 KPa | Communication Type | HART 7 |
| Product Series | With Remote Seal Assembly | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | DP WITH REMOTE SEAL |
Specifications may be subject to change without notice
