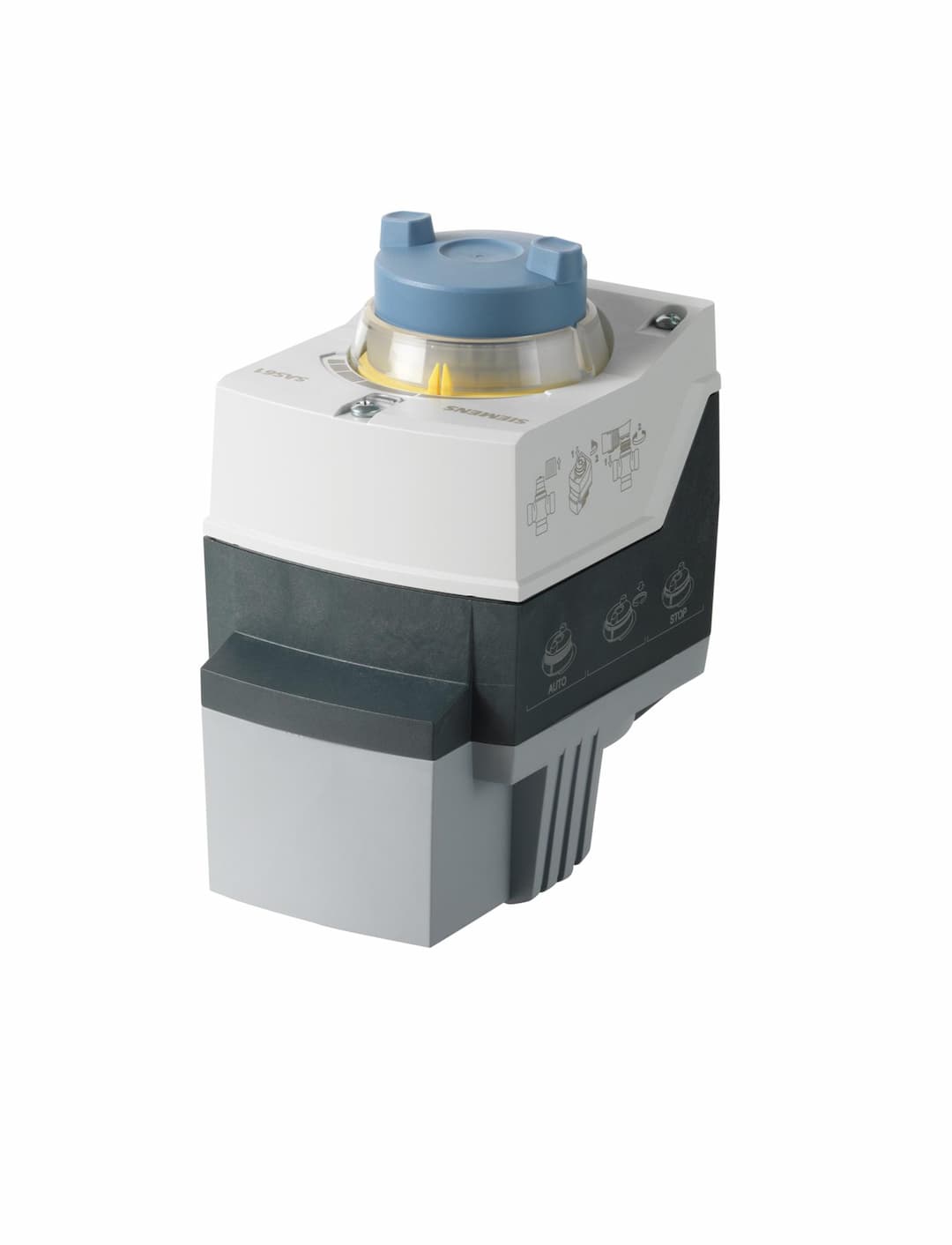

S55158-A101
Product ID:128364
Updated: 2026/4/3
Key Features
- 1Deliver high 400 N force for demanding industrial applications. 2、Feature a compact 5.5 mm stroke for space-constrained installations. 3、Operate reliably on 24 V AC or DC power supply. 4、Enable precise control with DC 0-10 V and 4-20 mA inputs. 5、Ensure safety with a spring return function in 30 seconds.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Operating Range | DC 0…10 V | Operating Voltage | AC/DC 24 V |
| Positioning Time | DC 0…10 V; DC 4…20 mA; 0…1000 ohms | Positioning Signal | DC 0…10 V; DC 4…20 mA; 0…1000 ohms |
| Installation Position | Perpendicular to the horizontal plane | Power Consumption | 5.9 VA |
| Lifecycle | P.M300 | Country of Origin | Switzerland |
| ECCN | 9N9999 | AL | N |
| Model | S55158-A101 |
Specifications may be subject to change without notice
