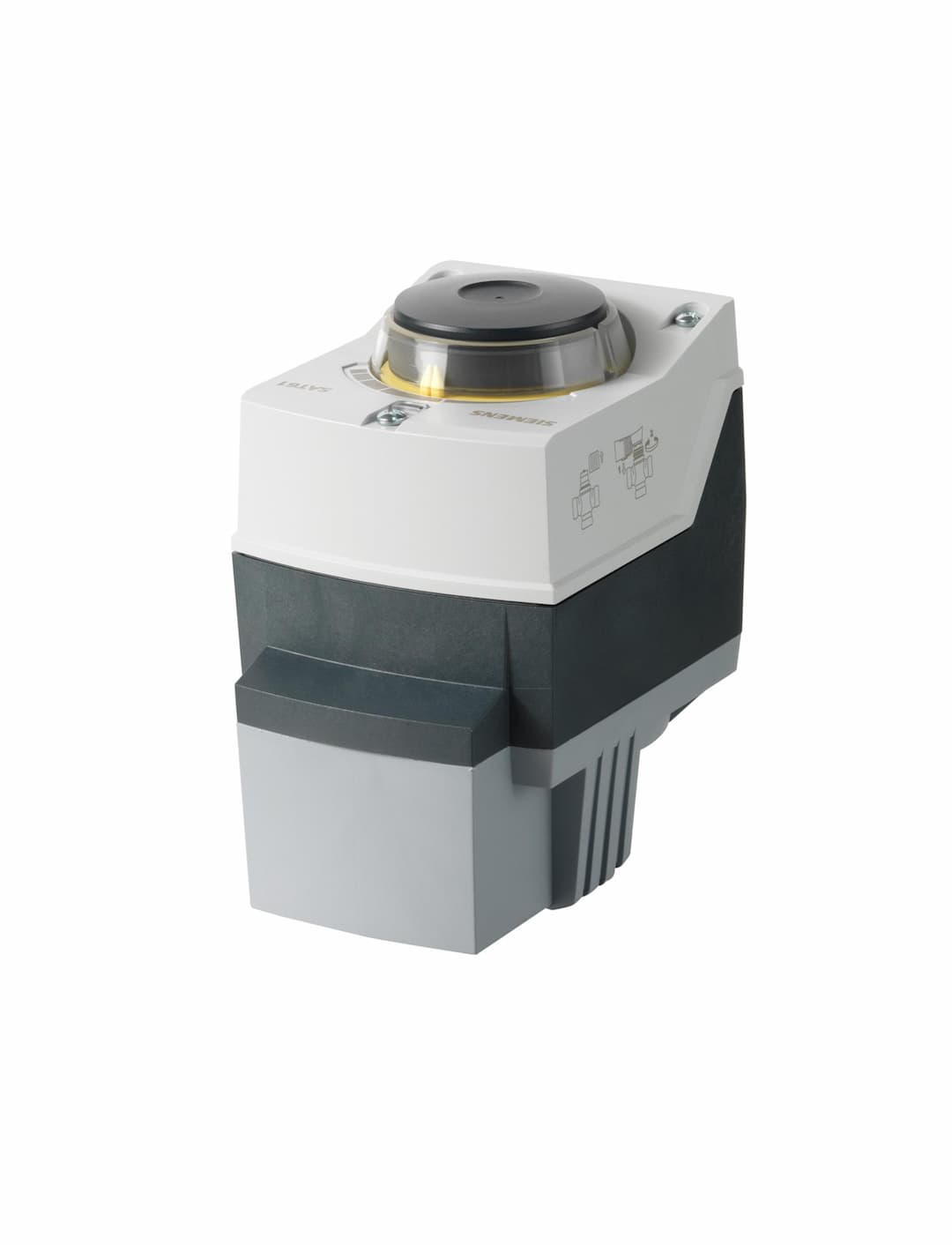

S55158-A118
Product ID:225477
Updated: 2026/4/3
Key Features
- 1Deliver precise control with 300 N force and a 5.5 mm stroke. 2、Ensure compatibility with AC/DC 24 V and DC 0-10 V / 4-20 mA inputs. 3、Achieve rapid adjustments with an 8-second response time. 4、Guarantee fail-safe operation via the spring return function. 5、Optimize HVAC system airflow and temperature regulation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Operating Range | DC 0…10 V | Operating Voltage | AC/DC 24 V |
| Positioning Time | DC 0…10 V; DC 4…20 mA; 0…1000 ohms | Positioning Signal | DC 0…10 V; DC 4…20 mA; 0…1000 ohms |
| Installation Position | Perpendicular to the horizontal plane | Power Consumption | 6.4 VA |
| Lifecycle | P.M300 | Country of Origin | Switzerland |
| ECCN | 9N9999 | AL | N |
| Model | S55158-A118 |
Specifications may be subject to change without notice
