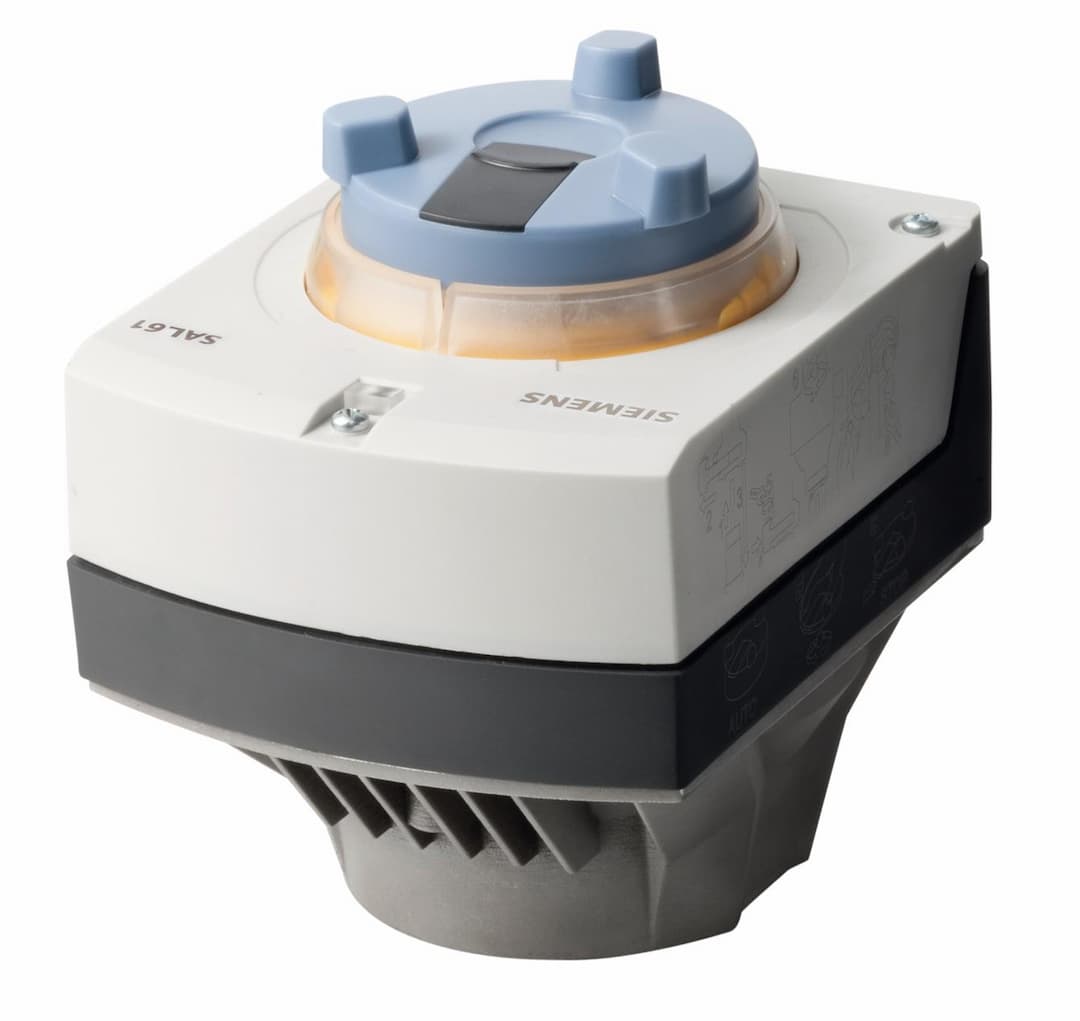

S55162-A100
Product ID:133310
Updated: 2026/4/3
Key Features
- 1Achieve precise 3-position control for accurate valve modulation. 2、Ensure reliable performance with robust construction for HVAC systems. 3、Enhance control using the integrated auxiliary switch and potentiometer. 4、Operate easily with the manual adjuster and clear position indicator. 5、Integrate flexibly with AC/DC 24V, 0-10V, or 4-20 mA signals.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Operating Range | DC 0…10 V | Operating Voltage | AC/DC 24 V |
| Positioning Time | DC 0…10 V; DC 4…20 mA; 0…1000 ohms | Positioning Signal | DC 0…10 V; DC 4…20 mA; 0…1000 ohms |
| Installation Position | Perpendicular to the horizontal plane | Power Consumption | 5 VA |
| Lifecycle | P.M300 | Country of Origin | Switzerland |
| ECCN | 9N9999 | AL | N |
| Model Number | S55162-A100 |
Specifications may be subject to change without notice
