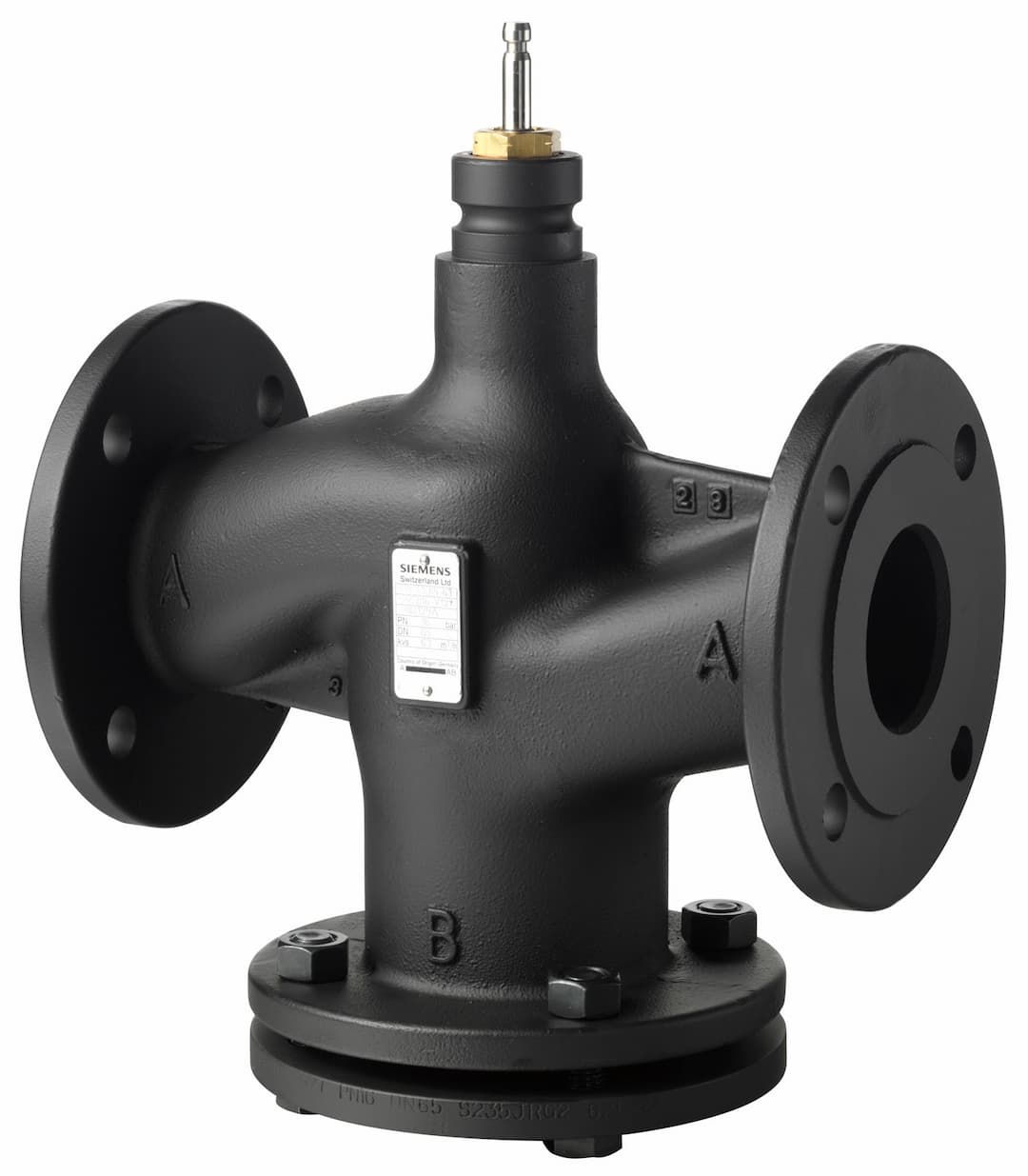

S55208-V105
Product ID:187614
Updated: 2026/4/3
Key Features
- 1Construct with nodular cast iron EN-GJS-400-18-LT for exceptional durability. 2、Operate reliably across a wide medium temperature range from -20°C to 220°C. 3、Achieve precise fluid control with kvs values from 0.16 to 630 m³/h. 4、Manage high differential pressure conditions effectively for system stability. 5、Accommodate flexible designs with available sizes from DN 15 to DN 250.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Leak Rate | 0...0.01% of <kvs/> value | Permitted Operating Pressure | 2500 kPa |
| Lifecycle | P.M300 | Country of Origin | Switzerland |
| ECCN | N | AL | N |
| Model Number | S55208-V105 |
Specifications may be subject to change without notice
