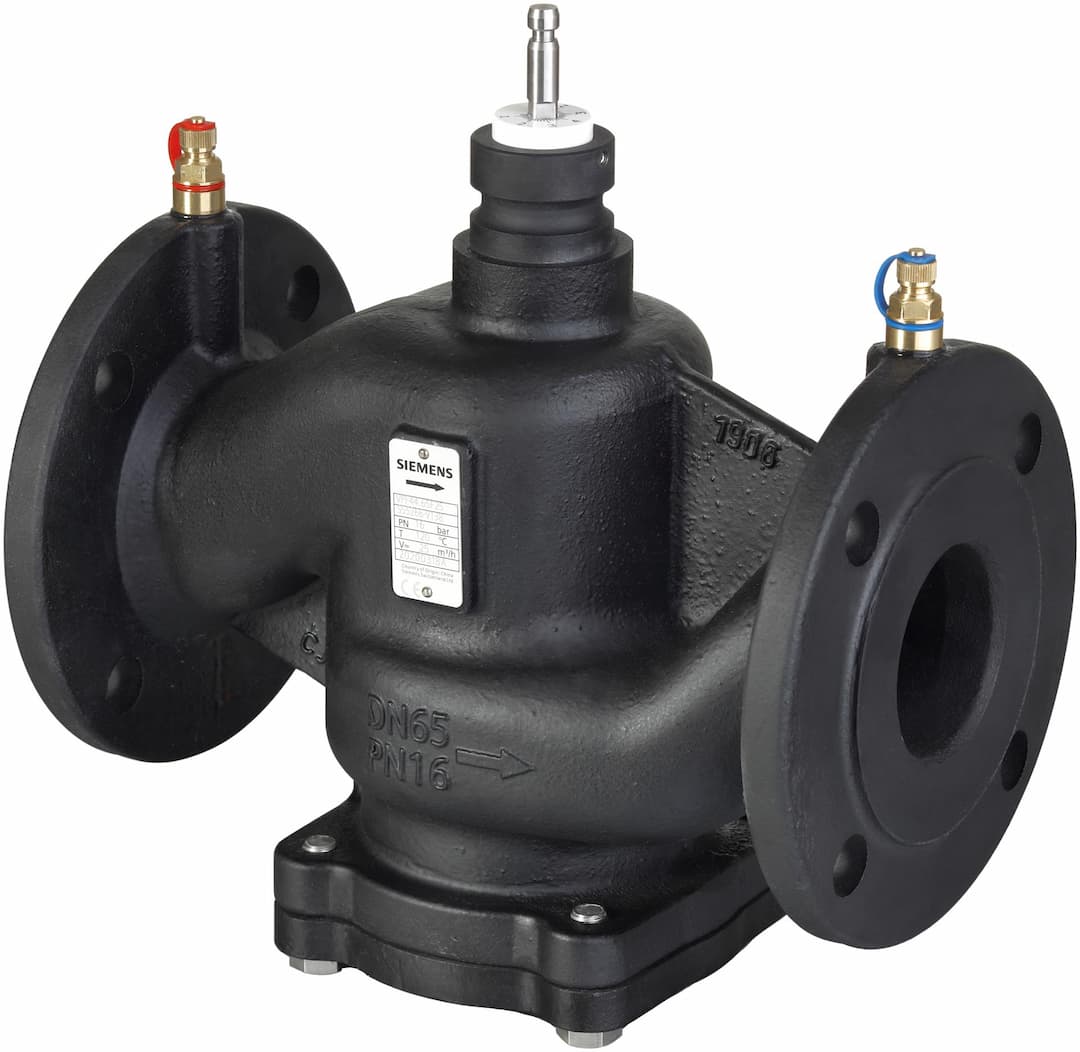

S55266-V177
Product ID:105666
Updated: 2026/4/3
Key Features
- 1Ensure constant differential pressure across the valve to maintain precise volumetric flow. 2、Support volumetric flows from 15 to 280 m³/h in sizes from DN 50 to 200. 3、Feature robust valve bodies made of gray cast iron GJL-250 or nodular cast iron GJL-400. 4、Adjust the desired maximum flow easily with a preset dial mechanism. 5、Integrate flexibly with SAX..P.., SAV..P.., or SQV..P.. electromotoric actuators.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Leakage Rate | Class IV (0…0.01% of volumetric flow) | Installation Position | Upright to 90° inclined |
| Permissible Operating Pressure | 1600 kPa | Lifecycle | P.M300 |
| Country of Origin | China | ECCN | N |
| AL | N | Model | S55266-V177 |
Specifications may be subject to change without notice
