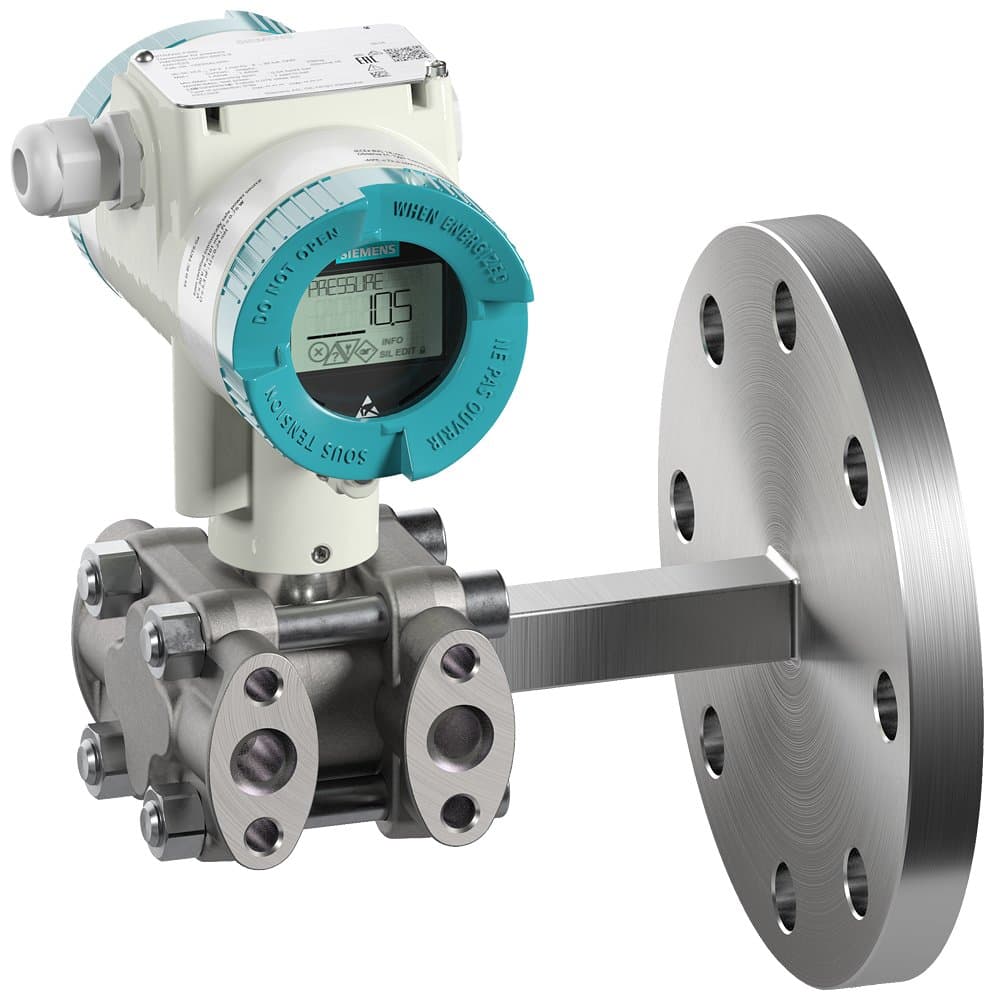

STRANS P320 FOR LEVEL
Product ID:197238
Updated: 2026/7/2
Key Features
- 1Achieve high accuracy with a 100:1 measuring span ratio.
- 2Operate easily via four-button programming and HART interface.
- 3Withstand harsh conditions with robust, chemical-resistant construction.
- 4Utilize advanced NAMUR NE107 diagnostics for reliable operation.
- 5Install versatilely with EN 1092-1 and ASME B16.5 flange compatibility.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Head Protection Rating | With | Terminal Protection Rating | Corrosive and Non-Corrosive Gases, Liquids, and Vapors |
| Presence of Bracket | Without Bracket | Presence of Display | With |
| Cable and Plug Material | Plastic | Electrical Connection | M20*1.5 |
| Explosion Protection Type | Non-Explosion Proof | Enclosure Material | Aluminum Alloy |
| Presence of Capillary | No Capillary, Direct Connection | Filling Liquid | Silicone Oil M5 |
| Wetted Materials | HC 276 | Process Connection | Single Flange, ASME B16.5 3” Class 150 RFSF |
| Ambient Temperature | -10…50℃ | Process Temperature | -90…160℃ |
| Measurement Range | 0…25 kPa | Communication Type | HART 7 |
| Product Series | With Remote Sealed Assembly | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | STRANS P320 FOR LEVEL |
Specifications may be subject to change without notice
