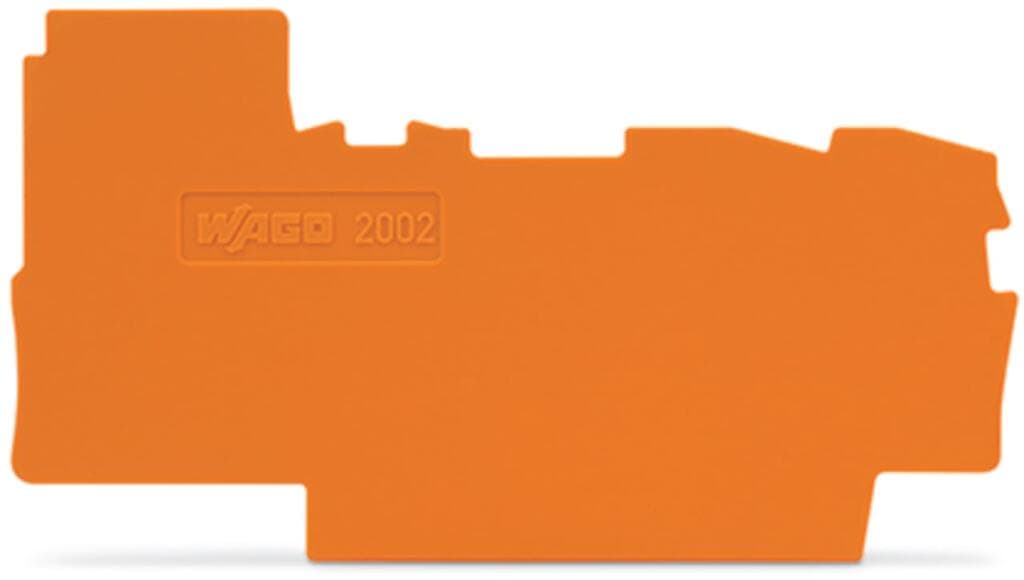

2002-7292
Product ID:38367
Updated: 2026/7/13
Key Features
- 1Durable construction with 0.8 mm thickness.
- 2Orange color for easy identification.
- 3Fire load of 0.049 MJ for enhanced safety.
- 4Compliant with V0 flammability class per UL94.
- 5Compatible with 2002-72xx series terminal blocks.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 0.8?mm?/ 0.031?inches | Height | 67?mm?/ 2.638?inches |
| Depth | 38.1?mm?/ 1.5?inches | Mounting type | snap-on type |
| Note (material data) | Information on material specifications can be found here | Color | orange |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.049MJ |
| Weight | 1.6g | Product Group | 22 (TOPJOB S) |
| eCl@ss 10.0 | 27-14-11-33 | eCl@ss 9.0 | 27-14-11-33 |
| ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4045454837372 | Customs tariff number | 8538906000 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
