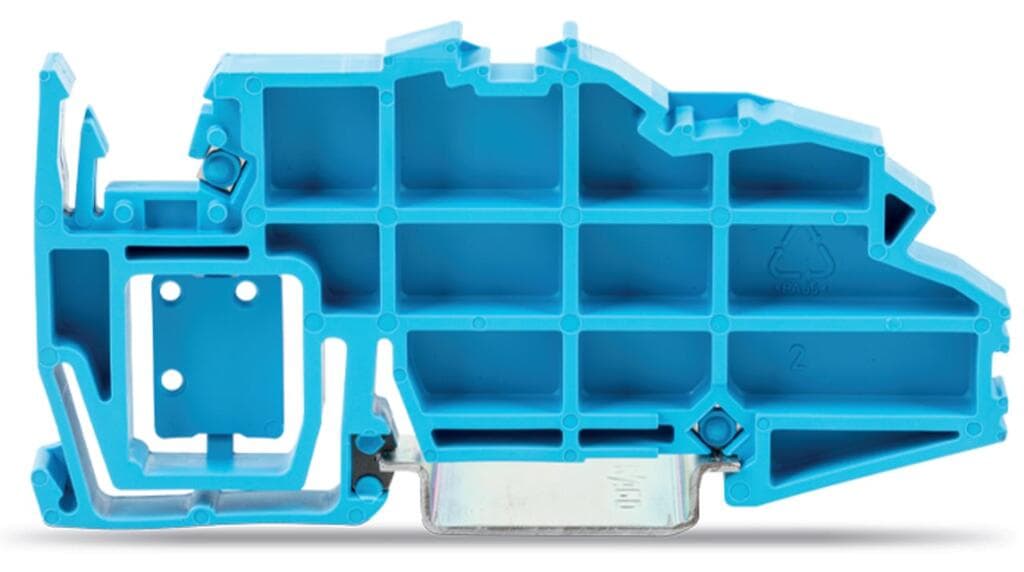

2009-305
Product ID:43048
Updated: 2026/7/18
Key Features
- 1End Stop Function: Prevents busbars from extending beyond the carrier.
- 2Detachable Separator Plate: Easily removable for maintenance or reconfiguration.
- 3DIN 35 Rail Compatibility: Designed for use with DIN 35 rail systems.
- 47.5 mm Thickness: Provides robust support for busbars.
- 5ROHS Compliant: Meets environmental safety standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 7.5?mm?/ 0.295?inches | Height | 96?mm?/ 3.78?inches |
| Color | blue | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.396MJ | Weight | 13.3g |
| Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-40-06-07 |
| eCl@ss 9.0 | 27-40-06-07 | ETIM 9.0 | EC001166 |
| ETIM 8.0 | EC001166 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 25?pcs | Packaging type | box |
| Country of origin | CN | GTIN | 4044918970020 |
| Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
