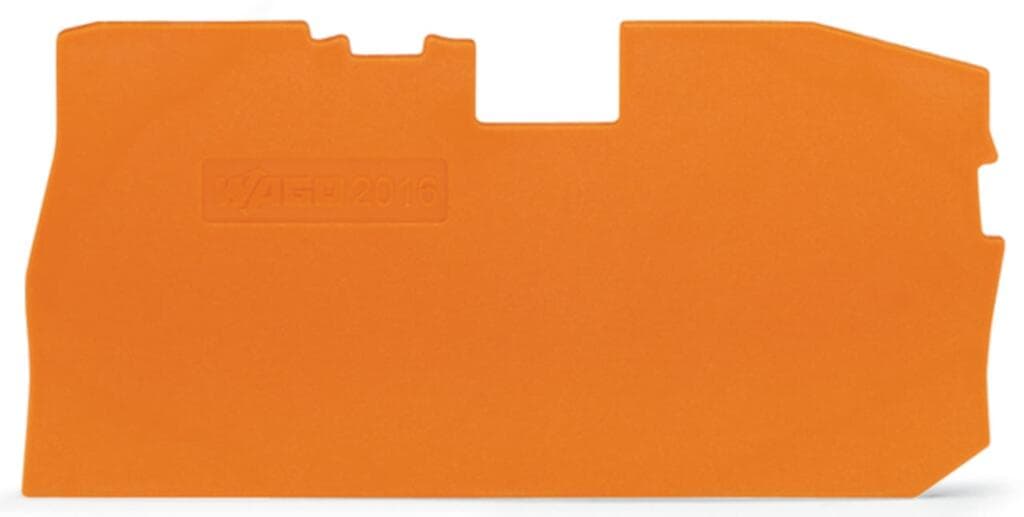

2016-7192
Product ID:48330
Updated: 2026/7/15
Key Features
- 1High-current carrying capacity up to 76 A.
- 2Gastight clamping units ensure secure connections.
- 3Durable design withstands extreme temperatures and vibrations.
- 4Meets IEC/EN 60947-7-1 and IEC/EN 60998-2-2 standards.
- 5Push-in CAGE CLAMP technology for easy and secure termination.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 1?mm?/ 0.039?inches | Height | 69?mm?/ 2.717?inches |
| Depth | 38?mm?/ 1.496?inches | Mounting type | snap-on type |
| Note (material data) | Information on material specifications can be found here | Color | orange |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.073MJ |
| Weight | 2.4g | Product Group | 22 (TOPJOB S) |
| eCl@ss 10.0 | 27-14-11-33 | eCl@ss 9.0 | 27-14-11-33 |
| ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4044918902601 | Customs tariff number | 8538906000 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
