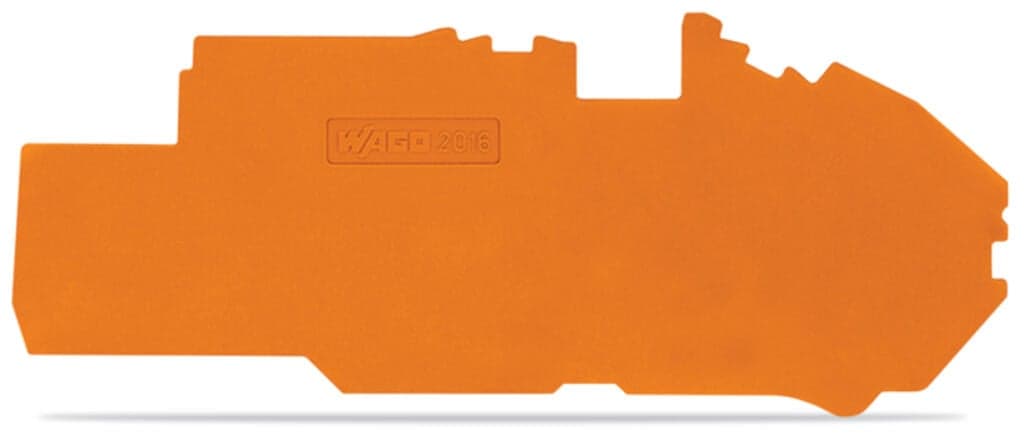

2016-7792
Product ID:48889
Updated: 2026/7/13
Key Features
- 1Snap-on Mounting Type: Easy installation with snap-on functionality.
- 2Polyamide Insulation: Durable and reliable insulation material for electrical connections.
- 3V0 Flammability Class: Meets stringent fire safety standards with a V0 rating.
- 4Compact Dimensions: 1 mm width, 98.1 mm height, and 41.7 mm depth for space-efficient designs.
- 5Orange Color Coding: Clearly identifiable orange color for easy identification in industrial settings.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 1?mm?/ 0.039?inches | Height | 98.1?mm?/ 3.925?inches |
| Depth | 41.7?mm?/ 1.642?inches | Mounting type | snap-on type |
| Note (material data) | Information on material specifications can be found here | Color | orange |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.105MJ |
| Weight | 3.5g | Product Group | 22 (TOPJOB S) |
| eCl@ss 10.0 | 27-14-11-33 | eCl@ss 9.0 | 27-14-11-33 |
| ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4045454708535 | Customs tariff number | 8538906000 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
