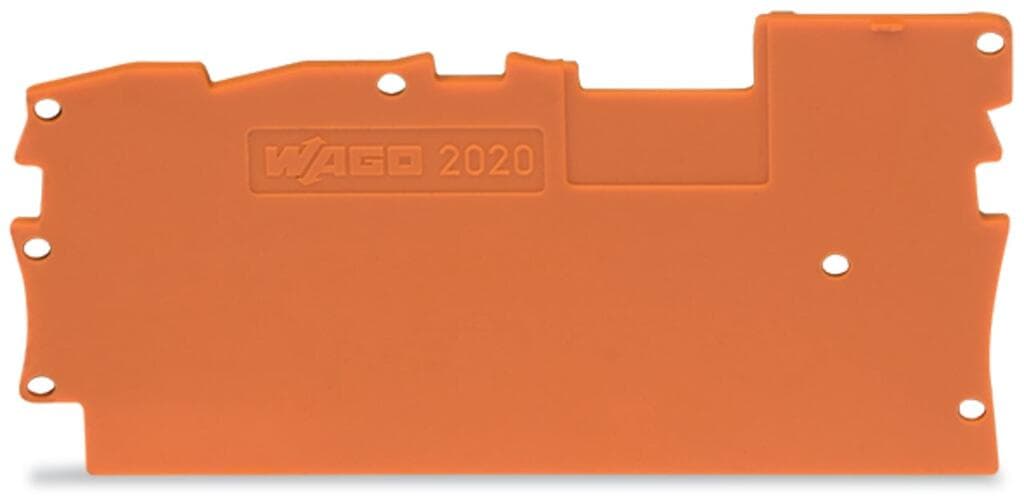

2020-1392
Product ID:46388
Updated: 2026/7/16
Key Features
- 1Durable orange-colored plate with a thickness of 1 mm.
- 2Measuring 57.8 mm in depth and 31.6 mm in height.
- 3Ultra-lightweight with a weight of 0.000 g.
- 4Ideal for use in industrial automation and control systems.
- 5Available in packs of 25 pieces at an affordable price.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM?-SYSTEM terminal strip. | Width | 1?mm?/ 0.039?inches |
| Height | 57.8?mm?/ 2.276?inches | Depth | 31.6?mm?/ 1.244?inches |
| Mounting type | snap-on type | Note (material data) | Information on material specifications can be found here |
| Color | orange | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Weight | 1.9g | eCl@ss 10.0 | 27-14-11-33 |
| eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
| ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?(25)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4055143280822 |
| Customs tariff number | 85389099990 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
