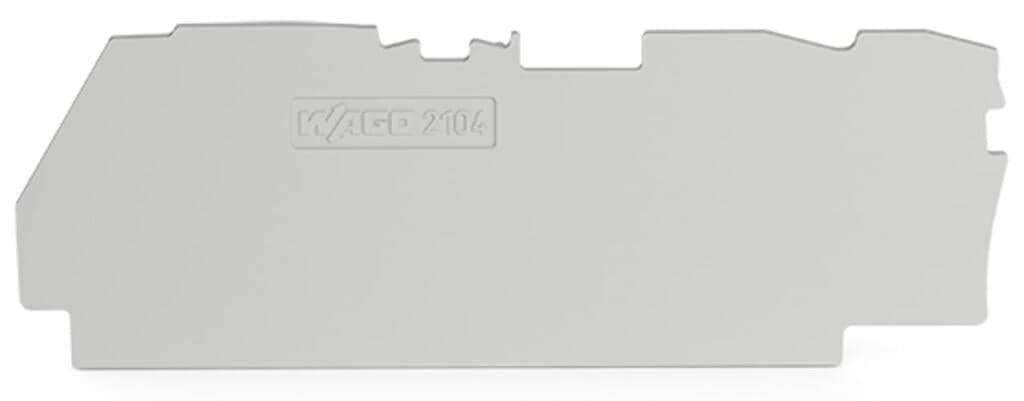

2104-1391
Product ID:39376
Updated: 2026/7/13
Key Features
- 1Snap-on Mounting Type: Easy installation with snap-on mechanism.
- 2Polyamide Insulation: High-quality polyamide (PA66) for reliable electrical insulation.
- 3Gray Color: Durable gray finish for visibility and aesthetics.
- 4DIN Rail Compatible: Designed for use with DIN rail terminal blocks.
- 5Compliant with RoHS: Meets RoHS compliance standards for environmental safety.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 1?mm?/ 0.039?inches | Height | 82.7?mm?/ 3.256?inches |
| Depth | 30.5?mm?/ 1.201?inches | Mounting type | snap-on type |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.079MJ |
| Weight | 2.7g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | ETIM 9.0 | EC000886 |
| ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?(25)?pcs | Packaging type | Box |
| Country of origin | DE | GTIN | 4055143975391 |
| Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
