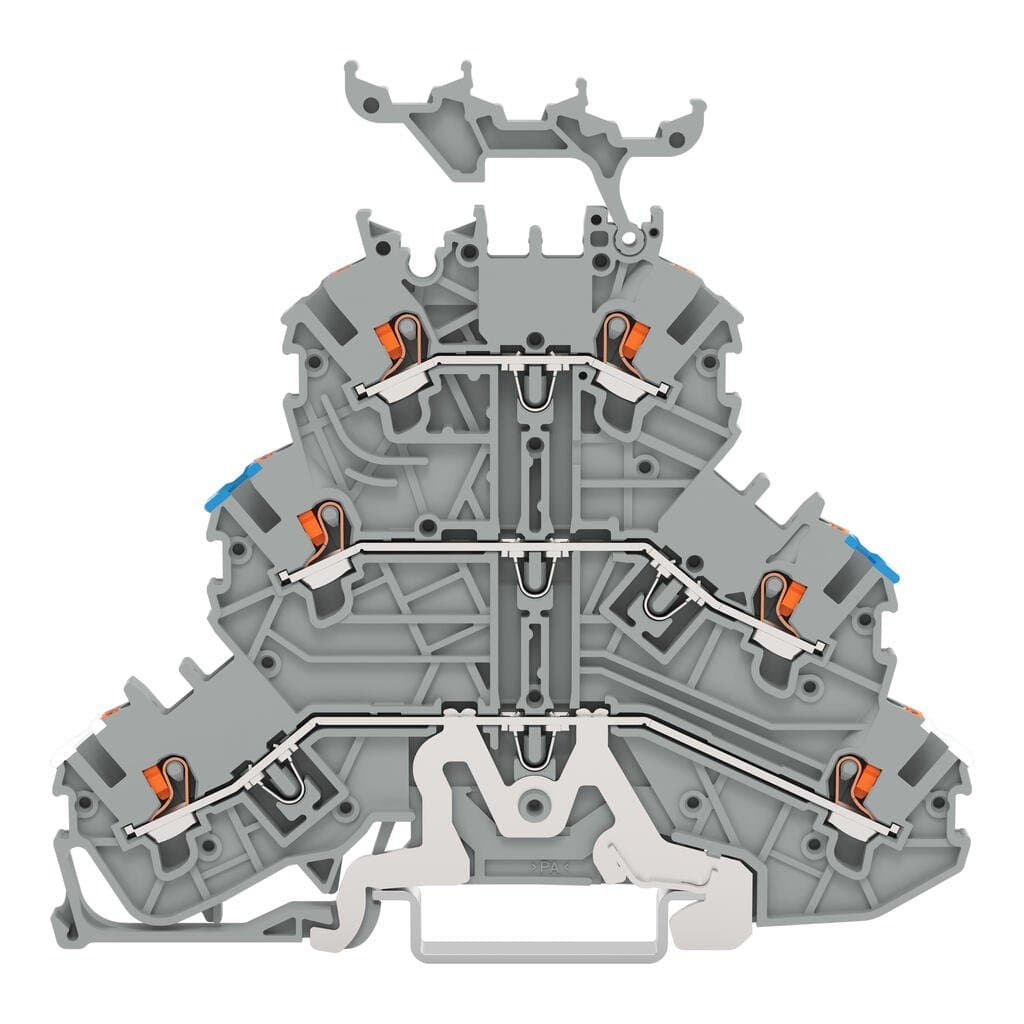

2200-3248
Product ID:41916
Updated: 2026/7/16
Key Features
- 1Triple-deck design for increased connectivity.
- 2Push-in connections for easy and secure wiring.
- 3Compatible with wire sizes from 0.25mm² to 4mm².
- 4DIN rail mounting for easy installation.
- 5Rated for currents of 22A and 26A.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Total number of potentials | 3 | Number of levels | 3 |
| Number of jumper slots | 6 | Width | 3.5?mm?/ 0.138?inches |
| Height | 93.6?mm?/ 3.685?inches | Depth from upper-edge of DIN-rail | 69.5?mm?/ 2.736?inches |
| Potential Marking | Shield/N/L | Mounting type | DIN-rail 35 x 15 |
| Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.294MJ | Actuator color | orange |
| Weight | 15.6g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | ETIM 9.0 | EC000897 |
| ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 40?pcs | Packaging type | Box |
| Country of origin | PL | GTIN | 4066966382549 |
| Customs tariff number | 85369010000 | RoHS Compliance Status | Compliant,No Exemption |
| Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 500V |
| Rated impulse voltage (III / 3) | 6kV | Rated current | 13.5A |
| Current at conductor cross-section (max.) mm2 | 16A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” | Power loss, per pole (potential) | 2.298W |
| Rated current I<sub>N</sub> for specified power loss | 24A | Resistance value for specified, current-dependent power loss | 0.001Ω |
| Connection technology | Push-in CAGE CLAMP? | Total number of connection points | 3 |
| Actuation type | Push-button | Actuation direction 1 | Operation parallel to conductor entry |
| Connectable conductor materials | Copper | Nominal cross-section | 1 mm2 |
| Solid conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG | Solid conductor; push-in termination | 0.5?mm2?/ 20?AWG |
| Stranded conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG | Fine-stranded conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG |
| Fine-stranded conductor; with insulated ferrule | 0.5 … 0.75?mm2?/ 20 … 18?AWG | Fine-stranded conductor; with ferrule; push-in termination | 0.5?mm2?/ 20?AWG |
| Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches |
| Number of connection points 2 | 3 |
Specifications may be subject to change without notice
