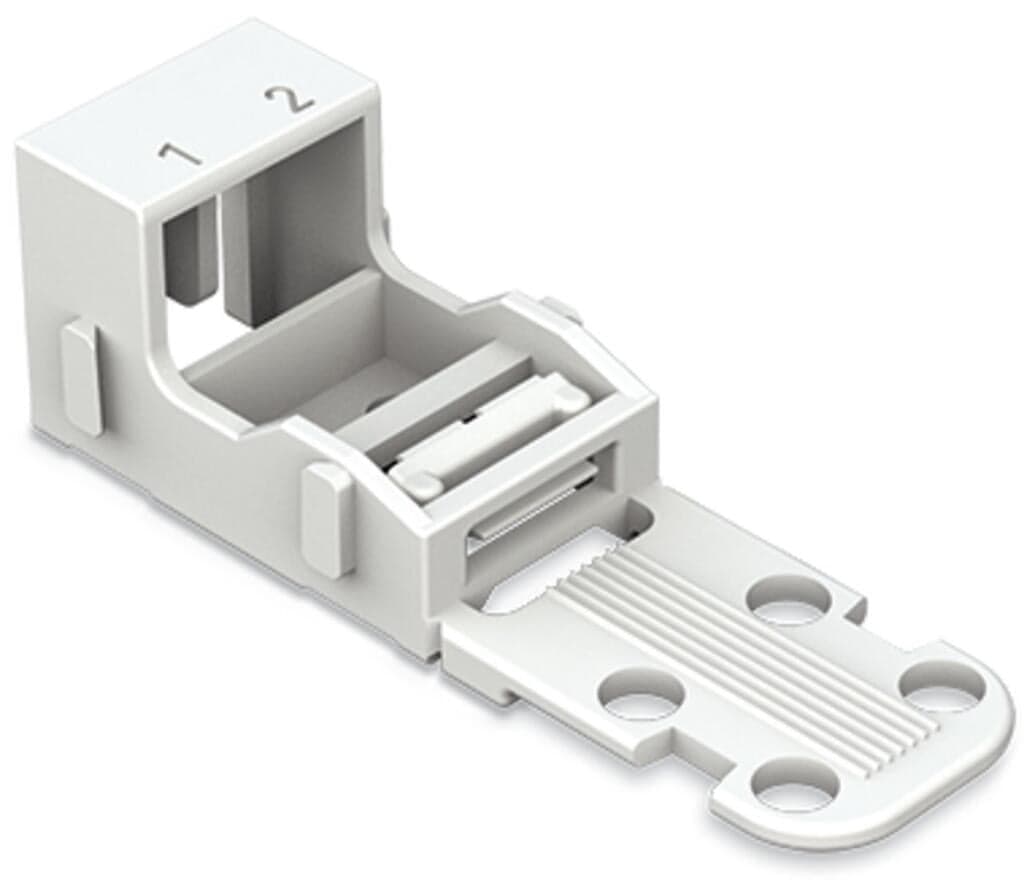

221-502
Product ID:39646
Updated: 2026/7/13
Key Features
- 1Ideal for 2-conductor terminal blocks with screw mounting.
- 2RoHS compliant for environmental safety.
- 3Suitable for connections up to 4 mm².
- 4White color for easy visibility in panels.
- 5Enhances wire security with cable tie option for strain relief.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 18.1?mm?/ 0.713?inches | Height from the surface | 16.9 mm / 0.665 inches |
| Depth | 52.8?mm?/ 2.079?inches | Mounting type | Screw mount |
| Suitable | for 2-wire connectors (4 mm2) | Note (material data) | Information on material specifications can be found here |
| Color | white | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.082MJ | Weight | 2.7g |
| eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-14-11-92 |
| ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(10)?pcs |
| Packaging type | box | Country of origin | CN |
| GTIN | 4055143595827 | Customs tariff number | 3926909985 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
