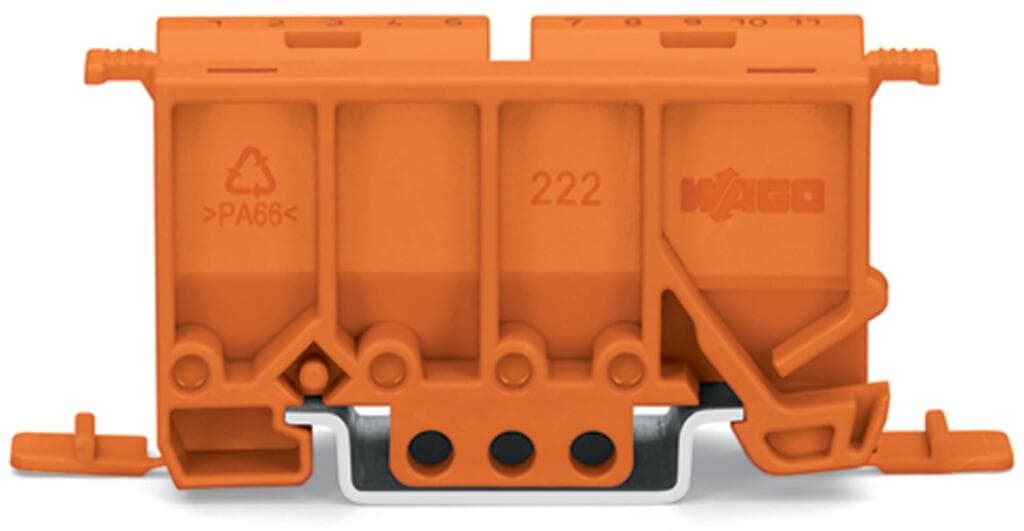

222-500
Product ID:45372
Updated: 2026/7/13
Key Features
- 1Compact design for easy installation on DIN rails.
- 2Suitable for 2-, 3-, and 5-wire compact splicing connectors.
- 3Orange color for visibility and identification.
- 4Fire load of 0.326 MJ for safety compliance.
- 5Available in packs of 50 units for bulk purchases.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 22?mm?/ 0.866?inches | Height | 65.6 mm / 2.583 inches |
| Depth from upper-edge of DIN-rail | 26 mm / 1.024 inches | Depth | 32 mm / 1.26 inches |
| Mounting type | DIN-35 rail | Suitable | for 2-, 3- and 5-conductor splicing connectors (222 Series) |
| Note (material data) | Information on material specifications can be found here | Color | orange |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.336MJ |
| Weight | 11.2g | Product Group | 7 (Push Wire Conn.) |
| eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-14-11-92 |
| ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(10)?pcs |
| Packaging type | box | Country of origin | CN |
| GTIN | 4045454714765 | Customs tariff number | 3926909985 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
