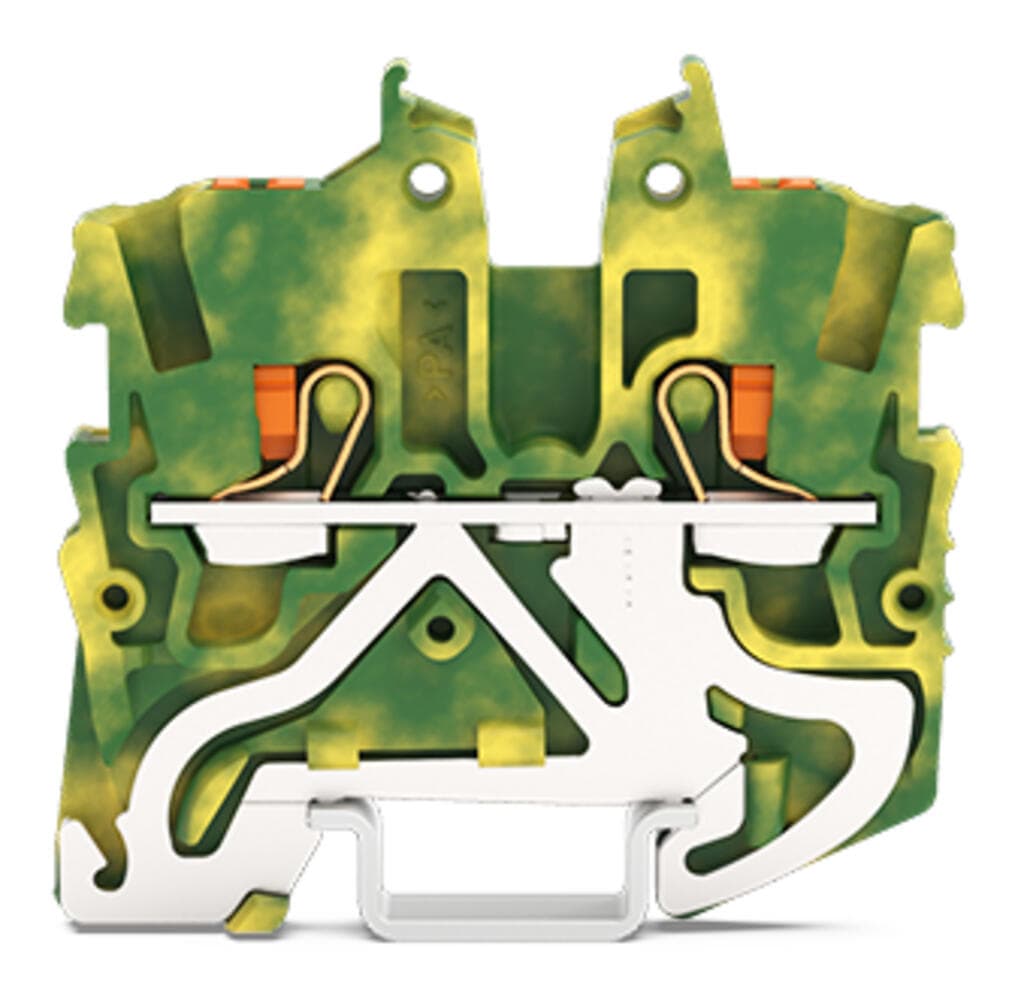

2250-1207
Product ID:47814
Updated: 2026/7/15
Key Features
- 1Reliable DIN Rail Mounting: Mounts securely on DIN rails for easy installation.
- 2Vibration-Proof Connections: Ensures stable connections even in harsh environments.
- 3Wide Wire Compatibility: Supports wire sizes from 24 to 16 AWG.
- 4Temperature Resilient: Operates within a temperature range of -35 to 85°C.
- 5Spring Terminal Technology: Easy push-in connection for quick and secure wiring.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 2 | Total number of potentials | 1 |
| Number of levels | 1 | Number of jumper slots | 1 |
| Width | 3.5?mm?/ 0.138?inches | Height | 34.1?mm?/ 1.343?inches |
| Depth from upper-edge of DIN-rail | 27.9?mm?/ 1.098?inches | Mounting type | DIN-15 rail |
| Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
| Color | green-yellow | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.065MJ | Weight | 3.8g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| ETIM 9.0 | EC000901 | ETIM 8.0 | EC000901 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
| Packaging type | Box | Country of origin | IN |
| GTIN | 4055143981729 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” |
| Connection technology | Push-in CAGE CLAMP? | Actuation type | Push-button |
| Connectable conductor materials | Copper | Nominal cross-section | 1 mm2 |
| Solid conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG | Solid conductor; push-in termination | 0.5 … 1.5?mm2?/ 20 … 16?AWG |
| Fine-stranded conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG | Fine-stranded conductor; with insulated ferrule | 0.14 … 0.75?mm2?/ 24 … 18?AWG |
| Fine-stranded conductor; with ferrule; push-in termination | 0.5 … 0.75?mm2?/ 20 … 18?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
| Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
