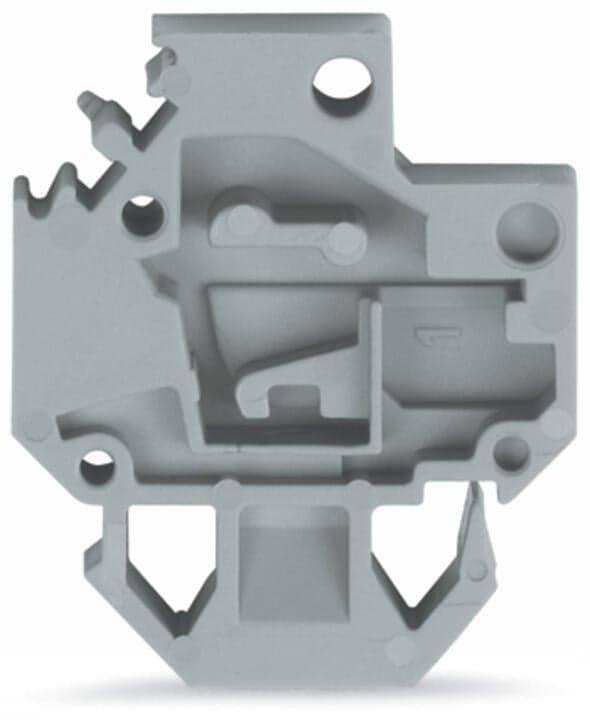

226-119
Product ID:46479
Updated: 2026/7/19
Key Features
- 1Precision Design: Specifically designed for plate thickness 2.5mm.
- 2Compact Size: Measures 22mm in height and 26mm in depth.
- 3Durable Material: Made from high-quality, fire-resistant material.
- 4Easy Installation: Simple to integrate into terminal block systems.
- 5Cost-Effective: Affordable price point starting at $0.51.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 6?mm?/ 0.236?inches | Height | 30.5?mm?/ 1.201?inches |
| Depth | 26?mm?/ 1.024?inches | Housing sheet thickness | 2.5 … 2.5?mm?/ 0.098 … 0.098?inches |
| Mounting type | Feed-through mounting | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V2 |
| Fire load | 0.131MJ | Weight | 2.2g |
| Product Group | 4 (Printed Circuit Connectors) | eCl@ss 10.0 | 27-14-11-92 |
| eCl@ss 9.0 | 27-14-11-92 | ETIM 9.0 | EC002848 |
| ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?(25)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4017332107143 |
| Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
