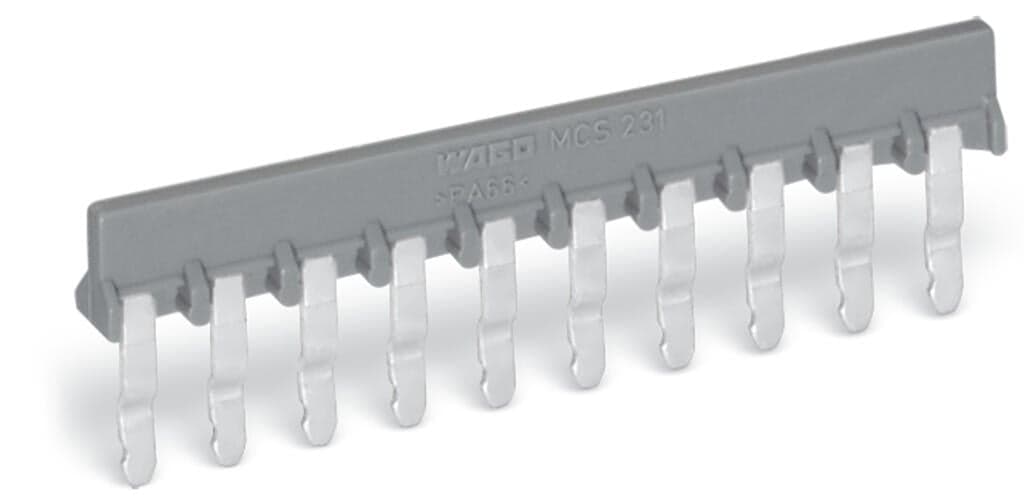

231-905
Product ID:45186
Updated: 2026/7/13
Key Features
- 1Insulated for Safety: The WAGO 231-905 is designed with insulation to ensure safe operation in high-voltage environments.
- 25 mm Pin Spacing: Compatible with 231 Series female connectors, featuring 5 mm pin spacing for precise connections.
- 3Gray Color: Available in a durable gray color, enhancing visibility and ease of use.
- 4DEKRA Certification: Meets stringent safety standards with DEKRA Certification, ensuring reliability in critical applications.
- 5High-Rated Current: Supports up to 16 A rated current, making it suitable for demanding electrical systems.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Pin spacing | 5/5.08?mm?/ 0.197/0.2?inches | Width | 25.3?mm?/ 0.996?inches |
| Depth | 6.15?mm?/ 0.242?inches | Jumper assignment | 1-2-3-4-5 |
| Suitable | for male and female connectors with CAGE CLAMP?connection | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.012MJ | Weight | 1.2g |
| Product Group | 3 (Multi Conn. System) | eCl@ss 10.0 | 27-14-11-40 |
| eCl@ss 9.0 | 27-14-11-40 | ETIM 9.0 | EC000489 |
| ETIM 8.0 | EC000489 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?(25)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4045454565855 |
| Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
| Ratings per | IEC/EN 60664-1 | Rated voltage (III/2) | 320V |
| Rated surge voltage (III/2) | 4kV | Rated current | 16A |
| Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Number of poles | 5 |
Specifications may be subject to change without notice
